Four Stands Continuous Cold Rolling Mill Machine For Precision Strips

I'm Online Chat Now

Four Stands Continuous Cold Rolling Mill Machine For Precision Strips

Four Stands Continuous Cold Rolling Mill Machine For Precision Strips
Four Stands Continuous Cold Rolling Mill Machine For Precision Strips
Four Stands Continuous Cold Rolling Mill Machine For Precision Strips Four Stands Continuous Cold Rolling Mill Machine For Precision Strips

Large Image :  Four Stands Continuous Cold Rolling Mill Machine For Precision Strips

Product Details:
Place of Origin: Wuxi, Jiangsu
Brand Name: MAZS
Certification: CE,ISO
Model Number: MAΦ175×620/Φ500×580
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Packaging Details: Wrapping films and wooden cases
Delivery Time: 150 days
Payment Terms: T/T, L/C

Four Stands Continuous Cold Rolling Mill Machine For Precision Strips

Description
Production Description: 550mm Four-High Four Stands Continuous Cold Rolling Mill Raw Material: Stainless Steel Q235, SL400, SS400, SPHC, Etc.
Input Thickness: ≤2.75mm Input Width: 520mm
Output Thickness: ≥0.7mm Speed: 250m/min
High Light:

Four Stands Continuous Cold Rolling Mill

,

Q235 Continuous Cold Rolling Mill

,

Precision Strips cold rolling mill machine

Four Stands Continuous Cold Rolling Mill For Precision Strips For Q235, SL400, SS400, SPHC



1. Product description


Low Investment Cost
– Extremely flexible & productive solution for producing high quality & variety gauges of cold roll strip.Low Production Cost

– Continuous R&D of new roller material & quality have tremendously improved the roller wear resistant.Low Inventory Cost

– Allow to stock minimum range of raw material all the time.

High Product Flexibility
– High gauges flexibility achievable through AC drive screw jack control system.

High Operation Versatility
– A very simple machine with user-friendly operation control system.

High Precision Gauge
– Higher finishing gauge accuracy / tolerance achievable through new innovative precision work roll design &profile





2. Reference Process flow:

Unwinding framewelding platformhydraulic shearincluding hydraulic devicefloor looperhigh turnover bracketalignment1# frame, 2# frame, 3# frame, 4# frame winding machine.





3. ​Equipment Composition:


1.Material: hot rolled carbon steel after trimming (Q235, SL400, SS400, SPHC, etc.)
2.Thickness: H≤2.75mm Width: B≤520mm
3.Thickness: H≤0.7mm,Width: B≤520mm
4.Incoming coil diameter (inner/outer): 508/1500mm
5.Output coil diameter (inner/outer): 508/1500mm
6,Rolling speed: V≤250m/min
Note: The above parameters are for reference only, it could be manufactured according to customer's requirements.

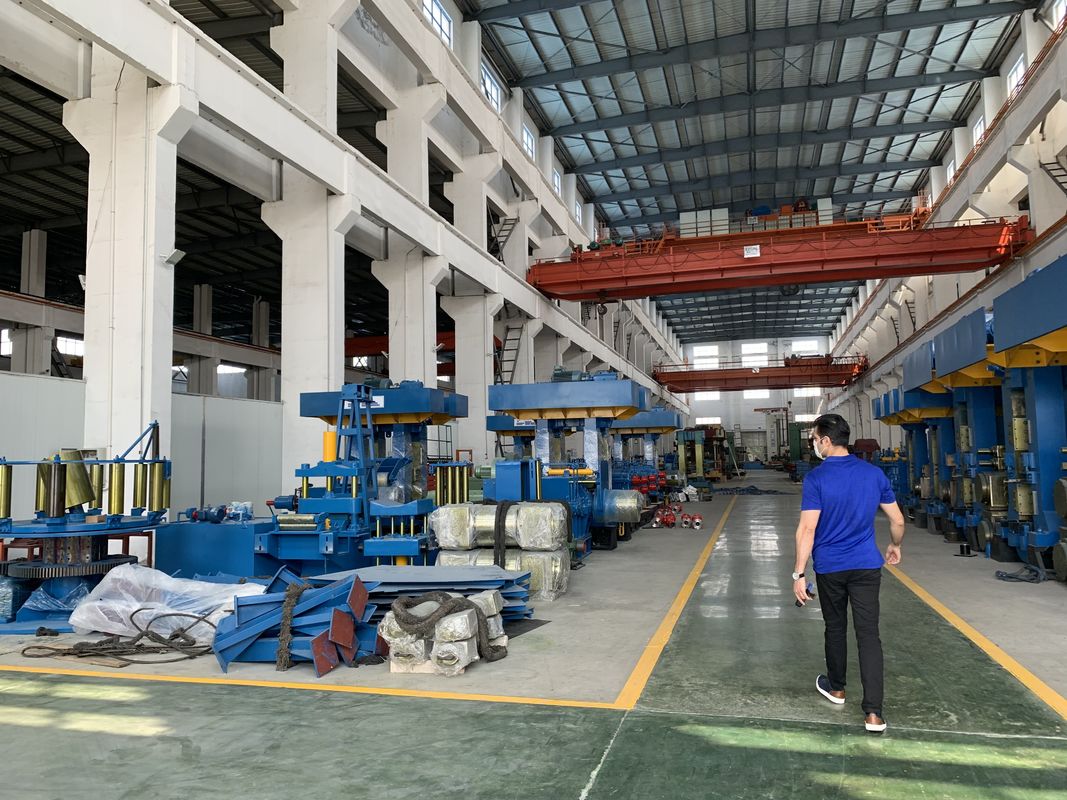

4.SGS Inspect photos

Four Stands Continuous Cold Rolling Mill Machine For Precision Strips 0Four Stands Continuous Cold Rolling Mill Machine For Precision Strips 1





5. Equipment list

1. Hydraulic expansion and contraction uncoiler:  one set;

2. Hydraulic shear  :                                                one set;

3. Welding platform (welder customized):             one set;

4. Landing material storage looper:                        one set;

5. Feeding process platform (with roller guide) :    one set;

6. Four sets of four-high rolling mill:                      one set;

7 Discharging process platform (with hydraulic shear) :one set;

8. Hydraulic winding machine:                                one set;

9. Electric control cabinet:                                     one set;

10. Dilute oil station:                                              one set;

11. Hydraulic station:                                             one set;

12. Hydraulic station for bending roll:                   one set;

13. Process lubrication station (user's own)          one set;

14. Four thickness measuring instruments (customized by users)   Four sets;

15. Oil and Gas Station                                           one set;





6. Warranty term: 12 months (excluding easy-broken parts)
