Product Details:
|
| Product: | Steel Coil Slitting Line | Material: | HRC, CRC, GI, PPGI, Q195, Q235, Q345 |
|---|---|---|---|
| Strip Thickness: | 0.3-3mm | Max. Strip Width: | 1600mm |
| Inner Diameter Of Steel Coil: | ≥Φ508mm | Outer Diameter Of Steel Coil: | Φ1800mm |
| Slitting Speed: | Max 100m/min, Adjustable | Weight Of Steel Coil: | Max. 20000Kg |
| High Light: | 0.3-3mm metal coil slitter machine,metal coil slitter machine HRC,slitter machine steel PPGI |
||
1. Product description:
MA 0.3-3×1600mm Coil Slitting Machine HRC, CRC, GI, PPGI, Q195, Q235, Q345
2. Specifications:
| Material of coils |
HRC, CRC, GI, PPGI, Q195, Q235, Q345 |
| Strip thickness |
0.3-3 mm |
|
Max. Strip width |
1600mm |
|
Inner diameter of coils |
≥Φ508mm |
|
Outer diameter of coils |
Φ1800mm |
|
Max. Coil weight |
20000Kg |
|
Slitter motor |
75KW DC motor |
|
Slitter shaft |
Ф220 x 1650mm |
|
Disc knives on slitter shaft |
ID220mm x OD330mm x 10mm, 6CrW2Si |
|
Separating disc |
ID85 x OD210mm x 6mm, 65Mn |
|
Recoiler block |
Ф508 x 1700mm |
|
Recoiler motor |
90KW DC motor |
|
Electric control |
Eurotherm 590 DC driver cabinet plus control panels |
|
Slitting speed |
max 100m/min, adjustable |
3. Configurations:
It consists of following parts:

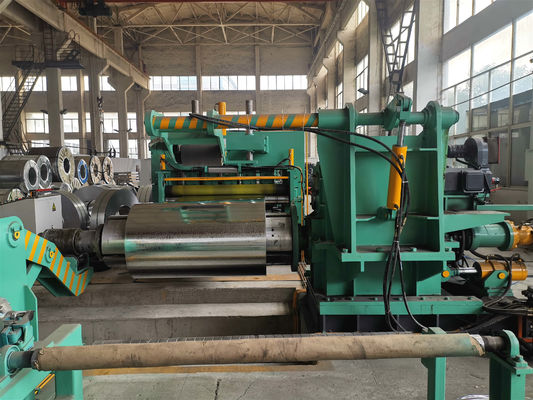

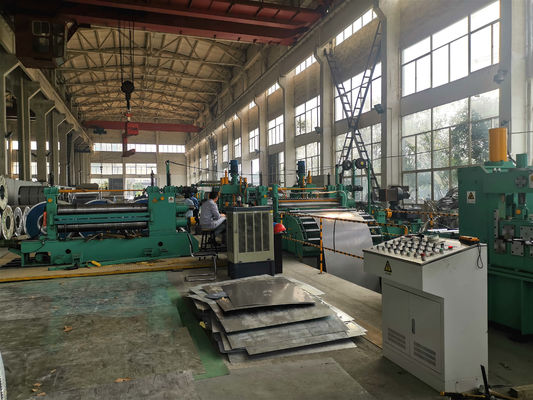

4. Machine photo for reference:
5. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
