Product Details:
|
| Product: | Steel Coil Slitting | Material: | Cold-rolled Galvanized Coil |
|---|---|---|---|
| Strip Thickness: | 0.2-0.8mm | Max. Strip Width: | 300-1250mm |
| Inner Diameter Of Steel Coil: | Φ508mm | Outer Diameter Of Steel Coil: | Max. Φ1800mm |
| Linear Speed: | 0-70M/Min | Weight Of Steel Coil: | Max. 10T |
| High Light: | 0.2-0.8mm Steel Coil Slitting Machine,70M/Min Steel Coil Slitting Machine,Automatic Precision Slitting Machine |
||
1. Product description:
MA 0.2-0.8X1250mm Automatic Precision Slitting Machine
MA 0.2-0.8X1250mm Automatic Precision Slitting Machine is mainly used for the cold rolling coils and zinc coating coils and so on.
2. Specifications:
| Material of coils |
cold-rolled galvanized coil |
| Strip thickness |
0.2-0.8mm |
|
Max. Strip width |
300-1250mm |
|
Inner diameter of coils |
Φ508mm |
|
Outer diameter of coils |
Max. Φ1800mm |
|
Max. Coil weight |
10T |
|
Diameter of slitting blade shaft |
Φ180,40Cr |
|
Slitting blade |
Φ180×Φ320×10, H13K |
|
Slitting capacity |
2-42 strips, with plate thickness of 0.2mm |
|
Width tolerance |
±0.05mm (plate thickness 0.2mm-0.8mm) |
|
Power |
380V/50Hz/3Ph |
|
Linear speed |
0-70M/Min. |
3. Configurations:
It consists of following parts:

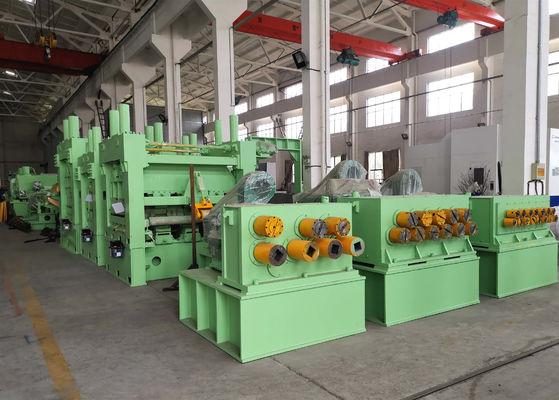

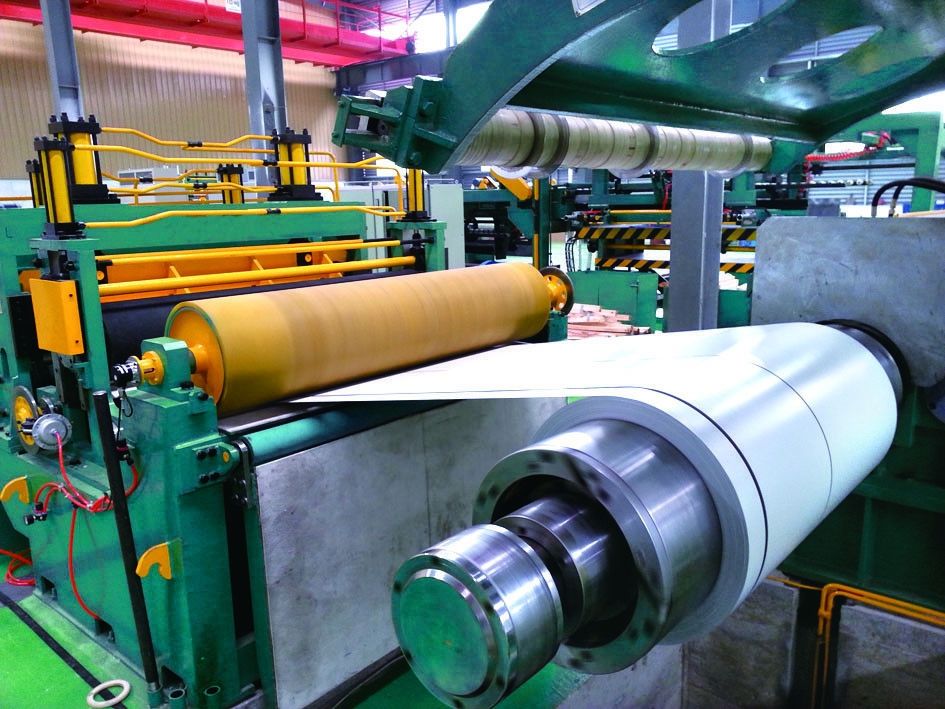

4. Machine photo for reference:
5. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
