Product Details:
|
| Raw Material: | Pipe Mill | Coil Width: | 60~160mm |
|---|---|---|---|
| Coil Outer Diameter: | Max. Φ1600mm | Coil Inner Diameter: | Φ508mm |
| Coil Weight: | Max.2.5T | Material Thickness: | 0.8~2.5mm For Round Pipes |
| Round Pipe Size: | Φ20mm~Φ50mm * 0.8mm~2.5mm | Square Pipe Size: | 16×16x1.5mm, 20x20x1.8mm, 25x25x2mm, 30x30x2mm, 40x40x2mm |
| Rectangle Pipe Size: | 25x50x2mm | Producing Length: | 4~10m |
| Producing Speed: | 30~80m/min | ||
| High Light: | ISO high frequency welded tube mill,50m/min high frequency welded tube mill,500KW steel tube mill |
||
1.Description of goods:

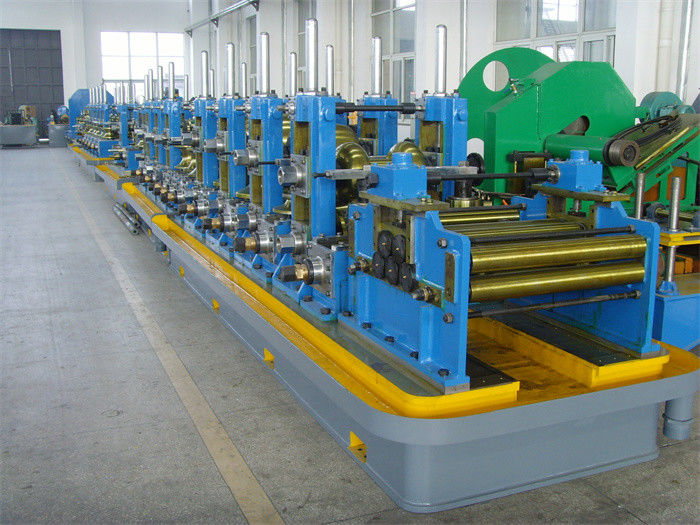

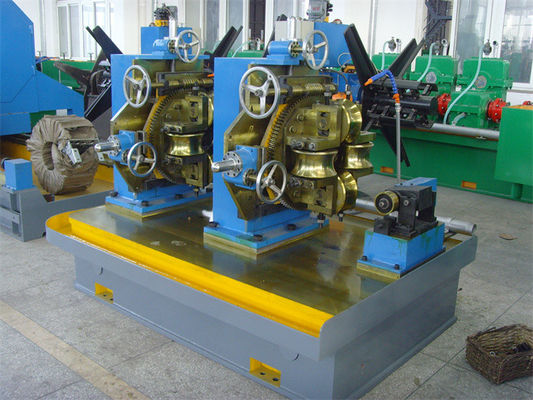

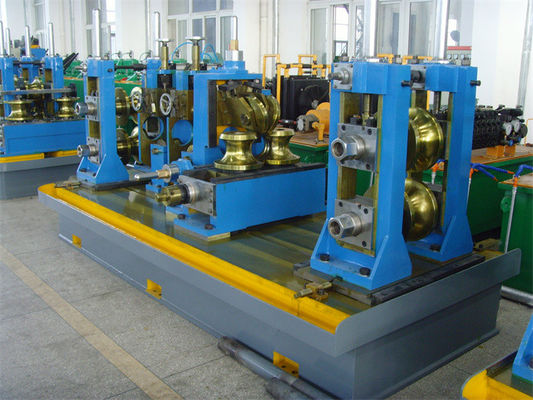

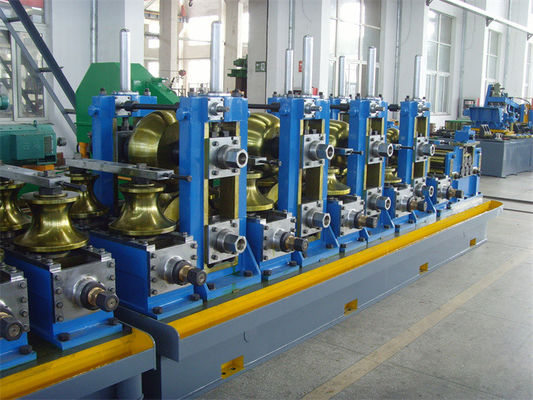

MA-Φ219 High Frequency Welded Pipe machine for all kinds of pipe with double head decoiler
2.Specification:
Material to be processed: carbon steel, cold hot rolled pre slit strip coils of weld able grade with max. 0.2% carbon
Type of Production: Round Tubes Squar, Square and Rectangular Hollow Sections
Round Tube Outside Diameter: Min 114, Max 219mm
Square Hollow Section: Min 90 x90, Max 170x170 mm
Rectangular Hollow Section: Min 80x 100, Max140x 200 mm
Tube Thickness: Min 2.2, Max 8.0 mm
Forming Line Speed: Max 45m/min (Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)
Tube Cut Length: Min 4 Max 12 meter
Length Accuracy: ± 3mm
3.Technical paramater:
| Model No. | MA114 | MA125 | MA165 | MA219 |
| Outer diameter | Φ40~114 MM | Φ50~130 MM | Φ76~165 MM | Φ89~219 MM |
| Wall thickness | 1.2~4.0 mm | 2.0~5.0 mm | 2.0~6.0 mm | 3.0~6.0 mm |
| Production speed | 0~70 m/min. | 0~60 m/min. | 0~50 m/min. | 0~50 m/min. |
| Driving motor power | 132 Kw*2 sets | 160 +200 Kw | 200 Kw*2 sets | 200 Kw*3 sets |
| HF welder power | 300 KW | 400 KW | 500 KW | 500 KW |
