Product Details:
|
| Raw Material: | Pre-slit Carbon Steel, CR Or HR Coil | Coil Width: | 60~160mm |
|---|---|---|---|
| Coil Inner Diameter: | Φ508mm | Coil Outer Diameter: | Max. Φ1600mm |
| Finished Product: | Round Tubes, Square Tubes, Rectangular, And Deformed Tubes | Producing Length: | 4~12m |
| Tube Thickness: | 1.2-4.0mm | Welding Method: | High Frequency Induction Welding |
| Length Accuracy: | ±3mm | Round Tube OD: | 22mm - 89mm |
| Drive Motor: | DC 75KW X 2, Adjusted By Eurotherm 590 Speed Controler | HF Welder: | 200KW, Solid State |

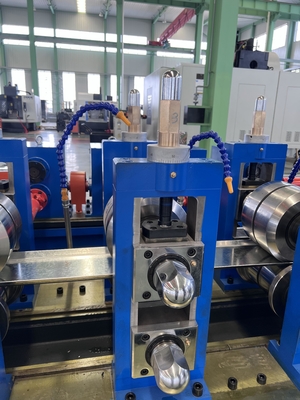

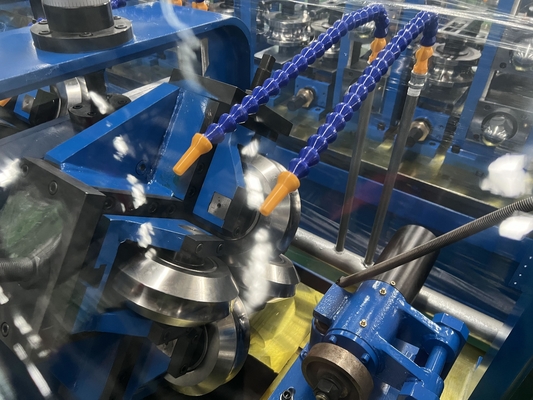

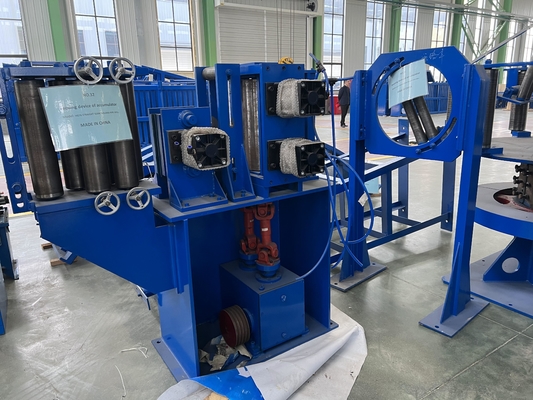

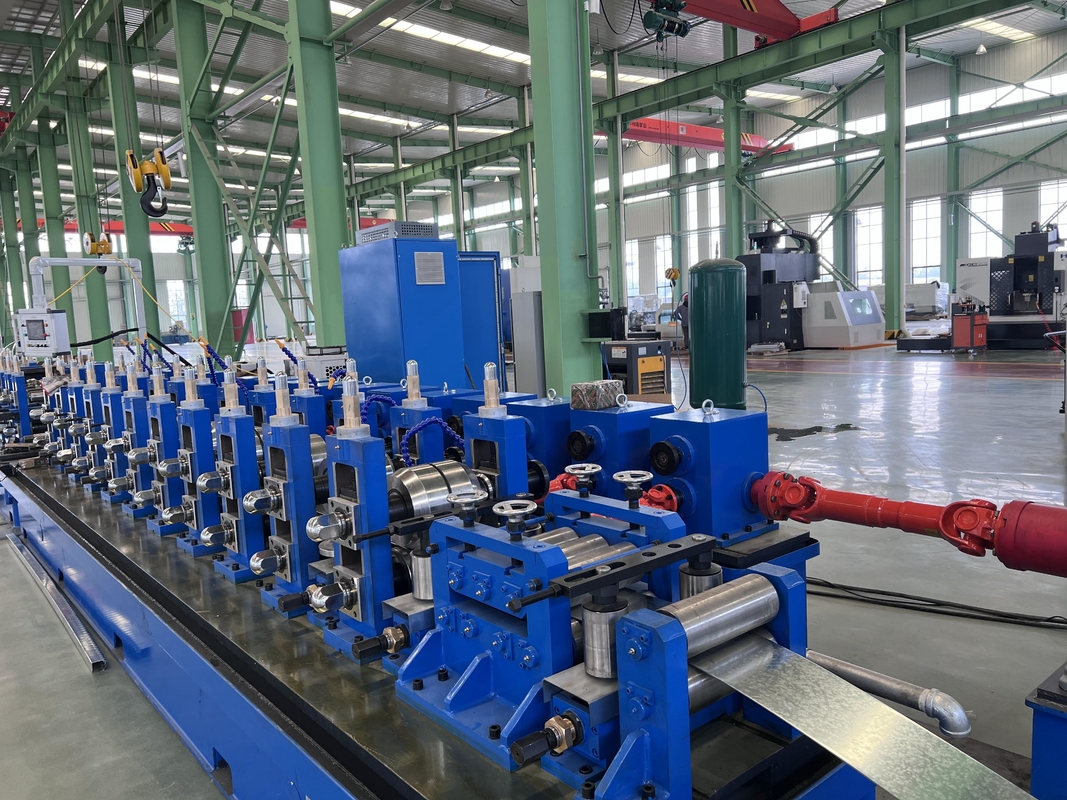

The High Frequency Welded Pipe Mill is a high-end product in welding tube mill line. It is specially designed for producing welded steel pipes with high efficiency, high accuracy and high quality with a maximum speed of 30-80m/min and a maximum diameter of Φ 1600mm. The material thickness of this tube mill ranges from 0.4mm to 16mm and the product length is 4-10m. It is an ideal machine for industries to produce high-frequency welded steel pipe with high quality and efficiency. With its excellent features of high frequency welding, high precision, high speed, and high efficiency, the High Frequency Welded Pipe Mill can provide you with long-term stable and reliable performance.
| Product Name | Parameter |
|---|---|
| High Frequency Welded Pipe Mill | |
| Coil Weight | Max. 5T |
| Producing Speed | 30~80m/min |
| Coil Inner Diameter | Φ508mm |
| Producing Length | 4~10m |
| Coil Width | 60~160mm |
| Coil Outer Diameter | Max. Φ1600mm |
| Raw Material | Hot Rolling Or Cold Rolling Steel |
| Material Thickness | 0.4-16mm |
| Welding Method | High Frequency Induction Welding |
MAZS High Frequency Welded Pipe Mill is a top-of-the-line machine used for producing high-quality welded steel pipes. This product features a maximum coil weight of 5 tons and a maximum coil outer diameter of Φ1600mm. It utilizes high frequency induction welding for superior welding strength and a producing length of 4 to 10m. It has been certified with CE and ISO and is available in minimum order of 1 set, with an export standard sea package. The delivery time is 60-100 days and payment terms are T/T or L/C. MAZS High Frequency Welded Pipe Mill is capable of supplying up to 30 sets.
Brand Name: MAZS
Place of Origin: CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Packaging Details: Export standard sea package
Delivery Time: 60 - 100 days
Payment Terms: T/T L/C
Supply Ability: 30 sets
Coil outer diameter: Max. Φ1600mm
Coil width: 60~160mm
Producing length: 4~10m
Producing speed: 30~80m/min
Product Name: High Frequency Welded Pipe Mill
We are a professional manufacturer of high frequency pipe making machine, high frequency pipe mill, hf welded tube mill, hf tube mill. Our specialized high frequency welded pipe mill has the advantages of low cost, high quality, high efficiency, energy saving, environmental protection and so on. We have CE and ISO certifications and meet the international standards for production, and all our products are exported to the world.
We provide comprehensive technical support and service for our High Frequency Welded Pipe Mills. Our experienced and knowledgeable staff are available to assist customers with any technical queries they may have, and to help troubleshoot any problems they may encounter. We also provide onsite training for new customers, and can provide remote support to ensure that their machines are running smoothly and efficiently.
Additionally, we offer a range of spare parts and components for our High Frequency Welded Pipe Mills, to ensure that customers can keep their machines in optimum condition. All of our spare parts are manufactured to the highest standards, and are rigorously tested before being sent out. We also provide a range of maintenance and repair services, to ensure that customers can keep their machines running at peak performance.
