Product Details:
|
| Description: | Cold Rolling Mill | Material: | Q195, Q215, Q235 |
|---|---|---|---|
| Incoming Thickness: | ≤2.5-3.0mm | Incoming Width: | ≤400mm |
| Steel Strip Coil Inner Diameter: | Ф508mm | Steel Strip Coil Outside Diameter: | Max. Ф1500mm |
| Coil Weight: | Max. 5T | Output Thickness: | ≥1.3-1.5mm |
| Output Width: | ≤400mm | Max. Rolling Force: | 3000KN |
| High Light: | Q215 4 hi cold rolling mill,500mm 4 hi cold rolling mill,4hi cold rolling machine |
||
1. Product Description:

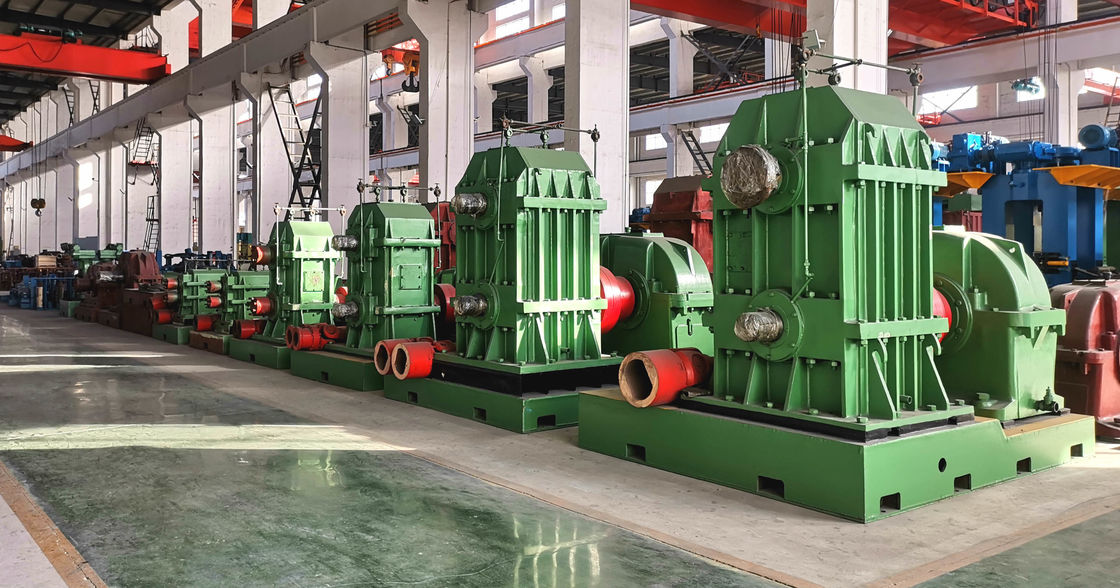

500mm Four High Two Stand Tandem Cold Mill
2. Introduction:
500mm Four High Two Stand Tandem Cold Mill is used to produce steel strips conforming to national standards GB716, GB708, YB/T025, etc. , the raw materials used in the production line are hot-rolled steel strips conforming to national standards.
3. Technical Parameters:
| No. | Items | Technical Data |
| 1 | Material | Q195, Q215, Q235 |
| 2 | Incoming thickness | ≤2.5-3.0mm |
| 3 | Incoming width | ≤400mm |
| 4 | Steel strip coil inner diameter | Ф508mm |
| 5 | Steel strip coil outer diameter | Max. Ф1500mm |
| 6 | Coil weight | Max. 5T |
| 7 | Output thickness | ≥1.3-1.5mm |
| 8 | Output width | ≤400mm |
| 9 | Max. rolling force | 3000KN |
| 10 | Max. design speed | 150m/min. |
| 11 | Accumulator feeding speed | 150m/min. |
| 12 | Recoiling tension | Max. 40 KN |
| 13 | Main motor | 800KW |
| 14 | Recoiler motor | 185KW |
| 15 | Screwdown control system | Mechanical |
Note: The above parameters are for reference only, it could be manufactured according to customer's requirements.
4. Process Flow:
Loading & Decoiling → Shearing → welding → Disc Accumulator → Turnove Stand → Vertical Roller Guide → F1 Four Gigh Rolling Mill (thickness measurement and tension measurement) → F2 Four Gigh Rolling Mill (thickness measurement) → Outlet Platform (degreasing) → Shearing → Recoiler → Unloading
5. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
