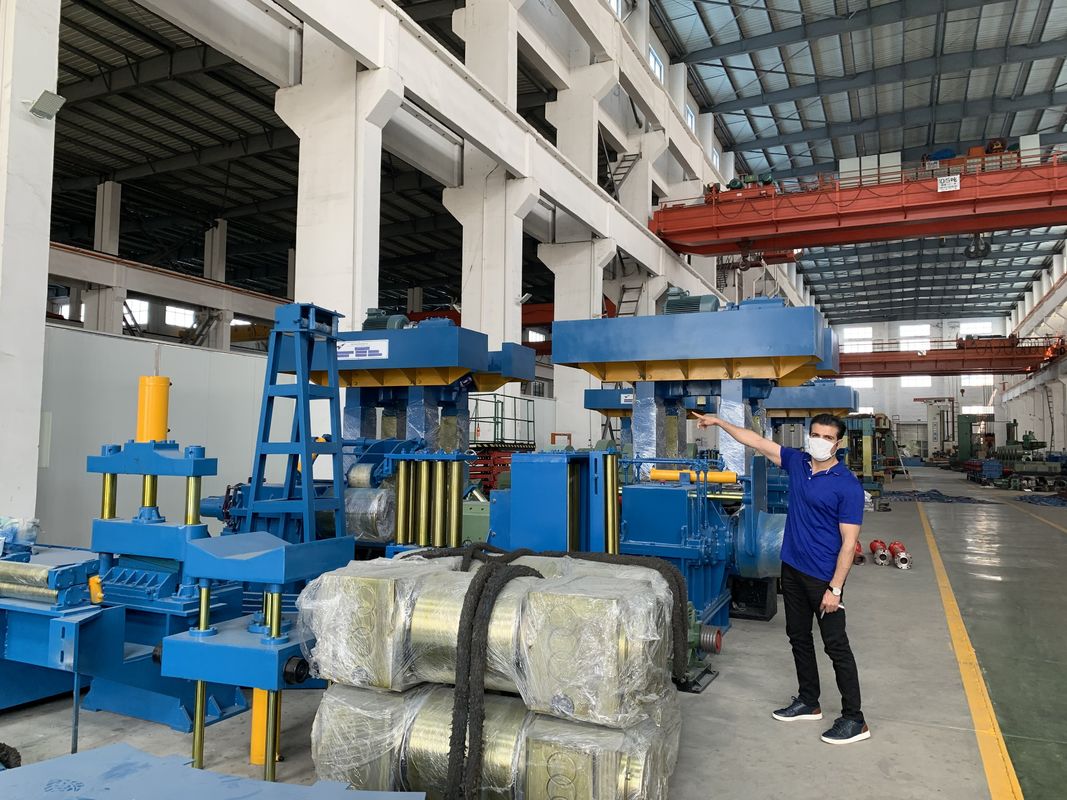

150m/Min Two Stands Reverse Cold Rolling Mill For Carbon Steel Copper

Coil Width 200mm Two Stands 150m/Min 4hi Cold Rolling Mill For Carbon Steel

1. Description of goods:

A continuous rolling mill is constructed by arranging driven horizontal rolling mills and undriven vertical rolling mills alternately and determining the values of the thickness of the rolled material between adjacent stands, the interaxial distance between work rolls, and the diameter of the work roll to satisfy predetermined relationships.

2. Mill process​:
Loading → unwinding → pinch

↓

Unloading ← mill four roller cold rolling mill roll left and right roll mill → unloading.

3. Techncial parameter:

4.The capacity calculation:

In raw 4mm, finished average thickness of 1.5mm, the average width of 150mm, the average volume weight of 2 ton per roll rolling three passes, the total rolling time of approximately 30 minutes, the yield of 4 tons per hour, the annual work time of 6000 hours, with an annual output of 2.4 million tons.

5. Delivery of technical documentation:

The supplier shall provide the following information according to the manufacturing and construction progress of the equipment.

The equipment layout and foundation drawing.

The equipment manuls.

Details or drawings of vulnerable parts and spare parts of mechanical equipment (models for standard parts and drawings for non-standard parts), electrical schematic diagram, and schematic diagram of unit lubrication station and hydraulic station.
