Product Details:
|
| Description Of Goods: | Steel Cold Rolling Mill Machines | Work Rollers (mm): | φ175 |
|---|---|---|---|
| Roller Length (mm): | 350 | Rolling Force (Tons): | ≤240T |
| Input Thickness (mm): | 3.0×240mm | Finished Thickness (mm): | 1.8×240mm |
| Voltage: | 380V 50Hz 3phases Or Order By The User | Color: | As Our Standard Or Order By User |
| High Light: | 240mm Continuous Cold Rolling Mill,metal DC steel cold rolling mill,4hi Carbon Steel Cold Rolling Mill |
||

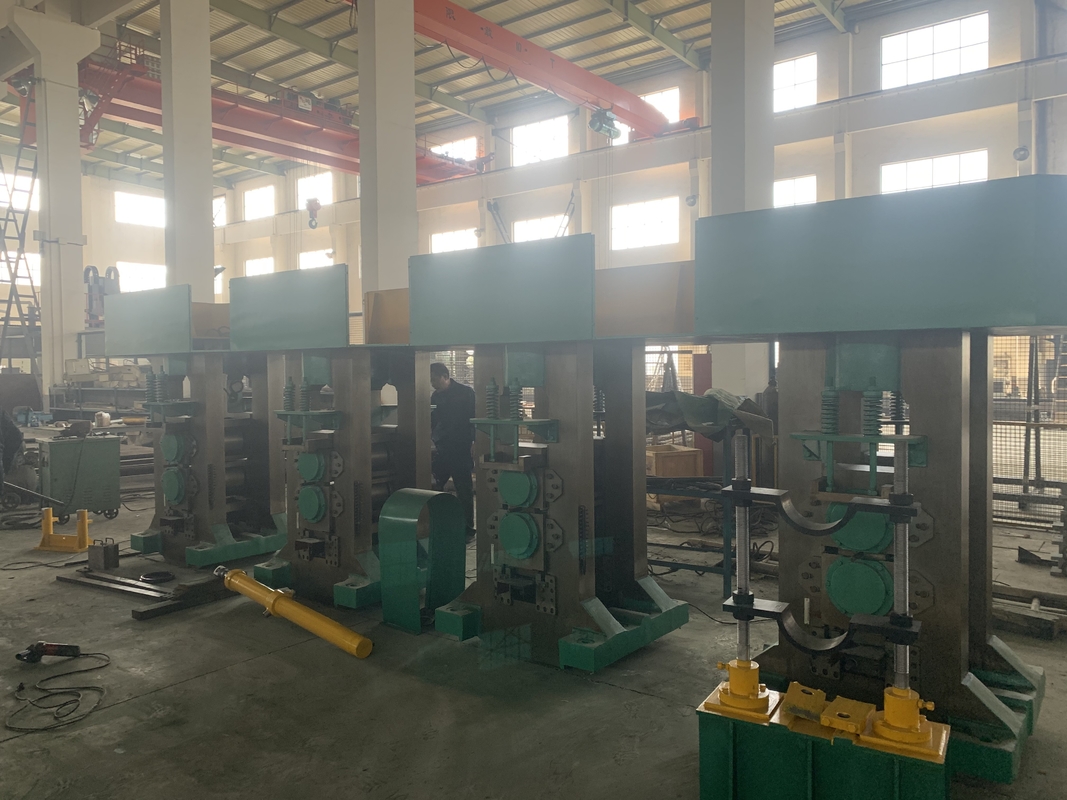

MA 175/φ350×350 Coil width 240mm Three Stands 150m/Min 4hi Cold Rolling Mill Carbon Steel
1. Description of goods:
MA 175/φ350×350 Coil width 240mm Three Stands 150m/Min 4hi Cold Rolling Mill Carbon Steel
2. Introduction:
Due to different numbers of rollers, the metal coil cold rolling mill is divided into 2 Hi, 4 Hi, 6 Hi, and 12 Hi AGC.

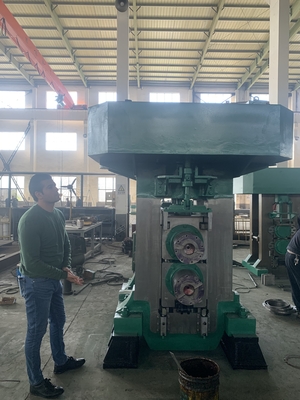

The 4-Hi cold rolling mill, one of metal coil cold rolling mill, is made from good quality raw material. A four-high cold rolling mill has four rolls, two small and two large. The two small rolls are work rolls in contact with metal coil, and the two large rolls are backup rolls which contact the back side of the small work rolls. At the same time, we are upgrading with the latest technological equipments when producing this cold rolling mill.
3. Techncial parameter:
| Type | 175/φ350×350 |
| Work rollers (mm) |
φ175 |
| Roller length (mm) | 350 |
| Rolling force (Tons) | 240T |
| Input thickness (mm) |
3.0×240mm |
| Finished thickness (mm) |
1.8×240mm |
| Width(mm) | 240 |
| Rolling speed (m/min) | 150 |
| Main motor (KW) | 280KW |
|
Rotation speed: |
750-1600r/min |
| Pressure down | Mechinal |
| Electric system |
Siemens 6RA80 series DC speed regulator |
4. Commitment of technical service and after sales service
The supplier shall provide the following information according to the manufacturing and construction progress of the equipment.
The equipment layout and foundation drawing.
The equipment manuls.
Details or drawings of vulnerable parts and spare parts of mechanical equipment (models for standard parts and drawings for non-standard parts), electrical schematic diagram, and schematic diagram of unit lubrication station and hydraulic station.
Contact Person: Ms. Sunnia Sun
Tel: 86-15358060625
Fax: 86-510-85880989
