Product Details:
|
| Description Of Goods: | MAΦ480/Φ1150×1380 Two Stand Cold Rolling Mill Machine With Full Mechanical Press Down Control System | Work Rollers (mm): | Φ205 |
|---|---|---|---|
| Roller Length (mm): | 1380 | Input Thickness (mm): | 3 |
| Finished Thickness (mm): | 0.25 | Width: | 1000mm |
| Voltage: | 380V 50Hz 3phases Or Order By The User | Color: | As Our Standard Or Order By User |
| High Light: | 1200kW Continuous Cold Rolling Mill,1000mm Continuous Cold Rolling Mill,cold rolling mill machine Q195 |
||
1. Description of goods:

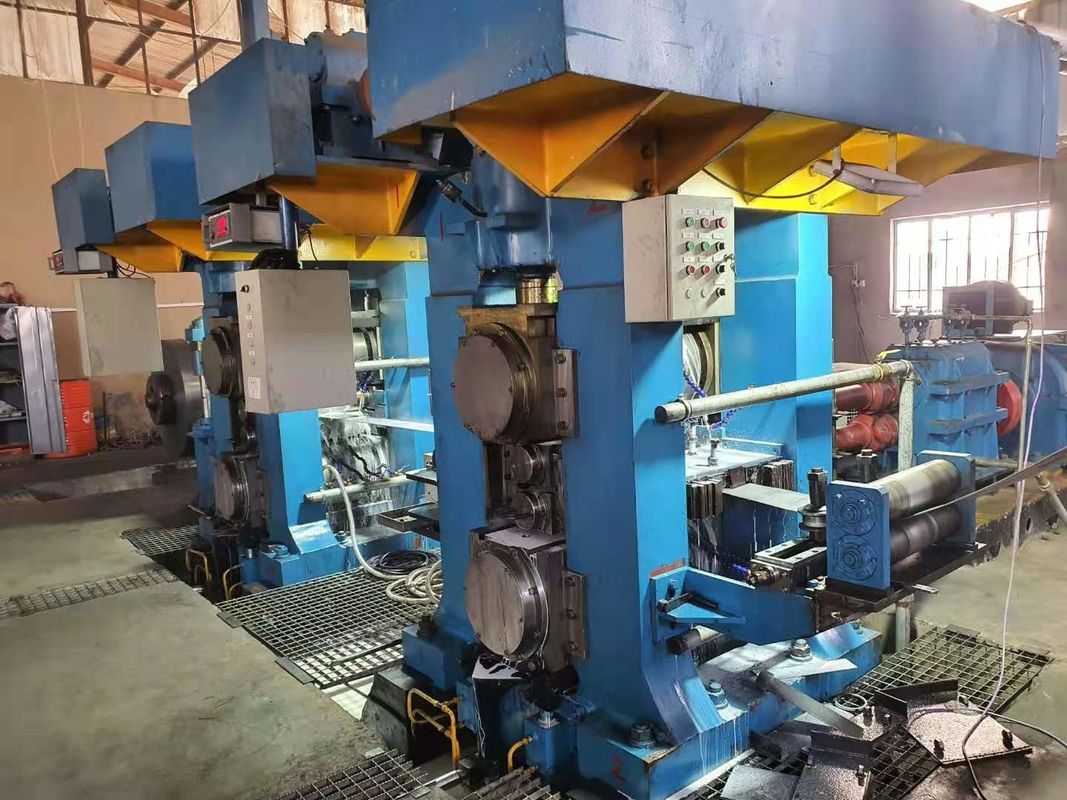

MAΦ480/Φ1150×1380 Two stand cold rolling mill machine with Full mechanical press down control system for Q195,Q215,Q235
2. Introduction:
Due to different numbers of rollers, the metal coil cold rolling mill is divided into 2 Hi, 4 Hi, 6 Hi, and 12 Hi AGC.
The 4-Hi cold rolling mill, one of metal coil cold rolling mill, is made from good quality raw material. A four-high cold rolling mill has four rolls, two small and two large. The two small rolls are work rolls in contact with metal coil, and the two large rolls are backup rolls which contact the back side of the small work rolls. At the same time, we are upgrading with the latest technological equipments when producing this cold rolling mill.
3. Advantages:
1. The second type of cold rolling mill controls rolling speed and its tension.
2. The stable rolling is ensured.
3. This machinery great guarantee the safety.
Hydraulic AGC System
Functions: AGC (hydraulic control of press-down seam), AFC (constant rolling force control), pre-control of thickness gauge, monitoring, etc
Precision:
Stable rolling: 0.3mm ±4.5μm; 0.5-0.8mm ±7μm
Speed-up and speed-down rolling: 2%h≤±10μm
4. Techncial parameter:
| Type | Φ190/Φ535×600 | Φ180/Φ650×850 | Φ205×900/Φ650×850 | Φ480/Φ1150×1380 |
| Work roller (mm) | Φ190 | Φ180 | Φ205 | Φ480 |
| Roller length (mm) | 600 | 850 | 850 | 1380 |
| Input thickness (mm) | 3 | 3 | 3 | 3 |
| Output thickness (mm) | 0.5 | 0.4 | 0.25 | 0.3 |
| Width(mm) | 500 | 750 | 800 | 1000 |
| Rolling force | 4000KN | 5000KN | 5500KN | 800T |
| Rolling speed (m/min) | 150 | 150 | 210 | 120 |
| Main motor (KW) | 450 | 630 | 630 | 1200 |
| Press-down motor | 30 | 44 | 44 | 60 |
