Product Details:
|
| Description Of Goods: | MAΦ480/Φ1150×1380 Two Stand Cold Rolling Mill Machine With Full Mechanical Press Down Control System For Q195,Q215,Q235 | Work Rollers (mm): | Φ175 |
|---|---|---|---|
| Roller Length (mm): | 1380 | Rolling Force (Tons): | 280 |
| Input Thickness (mm): | ≤4 | Finished Thickness (mm): | 0.3 |
| Voltage: | 380V 50Hz 3phases Or Order By The User | Color: | As Our Standard Or Order By User |
| High Light: | cold rolling mill machine Q195,380V cold rolling mill machine,120m/min aluminum cold rolling mill |
||
1. Description of goods:

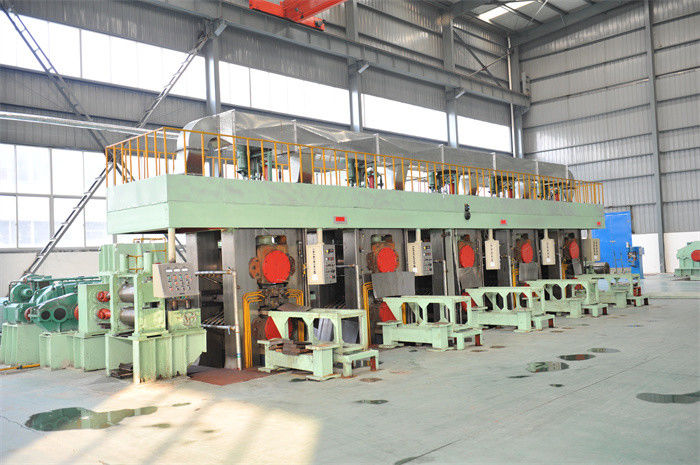

MAΦ480/Φ1150×1380 Two stand cold rolling mill machine with Full mechanical press down control system for Q195,Q215,Q235
2. Advantages:
1. The second type of cold rolling mill controls rolling speed and its tension.
2. The stable rolling is ensured.
3. This machinery great guarantee the safety.
Hydraulic AGC System
Functions: AGC (hydraulic control of press-down seam), AFC (constant rolling force control), pre-control of thickness gauge, monitoring, etc
Precision:
Stable rolling: 0.3mm ±4.5μm; 0.5-0.8mm ±7μm
Speed-up and speed-down rolling: 2%h≤±10μm
3. Techncial parameter:
| Type | Φ190/Φ535×600 | Φ180/Φ650×850 | Φ205×900/Φ650×850 | Φ480/Φ1150×1380 |
| Work roller (mm) | Φ190 | Φ180 | Φ205 | Φ480 |
| Roller length (mm) | 600 | 850 | 850 | 1380 |
| Input thickness (mm) | 3 | 3 | 3 | 3 |
| Output thickness (mm) | 0.5 | 0.4 | 0.25 | 0.3 |
| Width(mm) | 500 | 750 | 800 | 1000 |
| Rolling force | 4000KN | 5000KN | 5500KN | 800T |
| Rolling speed (m/min) | 150 | 150 | 210 | 120 |
| Main motor (KW) | 450 | 630 | 630 | 1200 |
| Press-down motor | 30 | 44 | 44 | 60 |
