Product Details:
|
| Description Of Goods: | Steel Cold Rolling Mill Machines | Work Rollers (mm): | Φ140 |
|---|---|---|---|
| Roller Length (mm): | 450 | Rolling Force (Tons): | 280 |
| Input Thickness (mm): | ≤3 | Finished Thickness (mm): | ≥0.3 |
| Voltage: | 380V 50Hz 3phases Or Order By The User | Color: | As Our Standard Or Order By User |
| High Light: | 180m/min 4 high cold rolling mill,CE 4 high cold rolling mill,4hi metal cold rolling mill |
||
1. Description of goods:

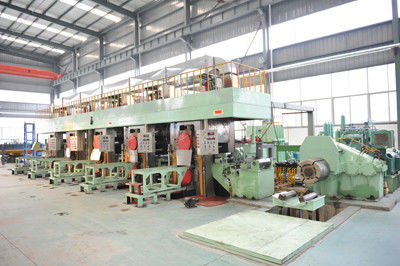

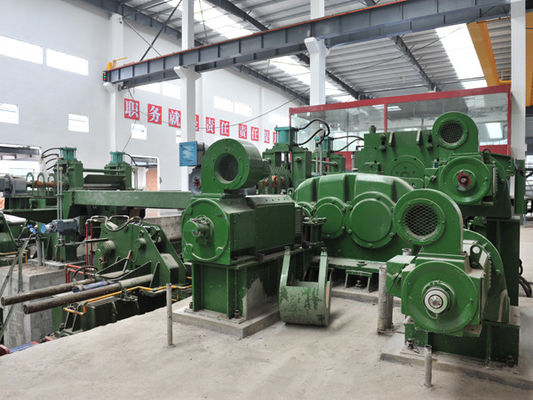

MAΦ140/Φ450×450 Two stand cold rolling mill machine with Disc storage looper for Q195,Q215,Q235
2. Introduction:
Due to different numbers of rollers, the metal coil cold rolling mill is divided into 2 Hi, 4 Hi, 6 Hi, and 12 Hi AGC.
The 4-Hi cold rolling mill, one of metal coil cold rolling mill, is made from good quality raw material. A four-high cold rolling mill has four rolls, two small and two large. The two small rolls are work rolls in contact with metal coil, and the two large rolls are backup rolls which contact the back side of the small work rolls. At the same time, we are upgrading with the latest technological equipments when producing this cold rolling mill.
3. Advantages:
1. The second type of cold rolling mill controls rolling speed and its tension.
2. The stable rolling is ensured.
3. This machinery great guarantee the safety.
Hydraulic AGC System
Functions: AGC (hydraulic control of press-down seam), AFC (constant rolling force control), pre-control of thickness gauge, monitoring, etc
Precision:
Stable rolling: 0.3mm ±4.5μm; 0.5-0.8mm ±7μm
Speed-up and speed-down rolling: 2%h≤±10μm
4. Techncial parameter:
| Type | Φ70/Φ210×250 | Φ135/Φ350×350 | Φ140/Φ450×450 | Φ175/Φ500×550 |
| Work rollers (mm) | Φ70 | Φ135 | Φ140 | Φ175 |
| Roller length (mm) | 250 | 250-350 | 450 | 500 |
| Rolling force (Tons) | 80 | 120 | 280 | 280 |
| Input thickness (mm) | 1.5 | ≤2.7 | ≤3 | ≤4 |
| Finished thickness (mm) | 0.08 | ≥0.15 | ≥0.3 | 0.3 |
| Width(mm) | 30-200 | ≤250 | 360 | 400 |
| Rolling speed (m/min) | 180 | 180 | 180 | 210 |
| Main motor (KW) | 22 | 55 | 75 | 90 |
| Press-down motor (KW) | 2.2 | 4 | 6 | 7.5 |
| Press-down speed (mm/s) | 0.06 | 0.08 | 0.08 | 0.08 |
| Speed reducer | JZQ650 | JZQ850 | JZQ450 | JZQ1000 |
| Weight (Tons) | 8.5 | 19 | 22 | 24 |
