Product Details:
|
| Product Name: | High Speed Cnc Automatic Metal Steel Coil Cut To Length Line For Sale | Input Material: | CR, HR Carbon Steel Coils, GI, PPGI Steel Plates |
|---|---|---|---|
| Strip Thickness: | 2~8mm | Strip Width Of Coil CTL Line: | 300~1250mm/1500mm/2000mm |
| Leveling Roller: | Φ180mm | Material Of Leveling Roller: | 40Cr, HRC56-58 |
| Cutting Speed: | (0~30) M/min, Adjustable | Color: | As Our Standard Or Order By User |
| High Light: | 2.0-8.0mm steel coil cut to length machine,30m/min steel coil cut to length machine,1250mm steel coil cut to length line |
||
1. Product name:
Middle Thick sheet Cut to Length of equipment high speed uncoiling for different sizes coils by PLC controled.
2. Introduction:

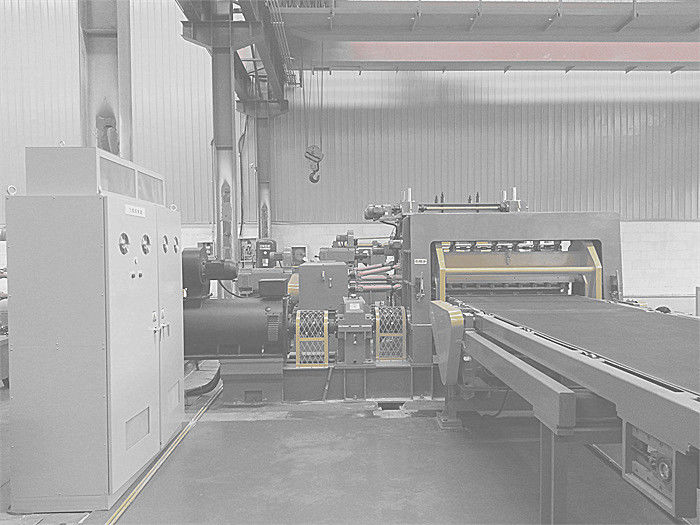

Middle thick plate cut-to-length line can meet customer’s request of max line speed 40m/min by uncoiling & leveling a coil strip, and then shearing the leveled flat strip to certain length of sheets.
This coil CTL line is especially suitable for CR, HR carbon steel coils, GI, PPGI steel plates.
The plate cut-to-length line (coil CTL line) has one leveling machine driven by DC or AC motor, and the length-fixing is by encoder, shearing style is stop-shear.
The middle thick plate cut-to-length line fit steel coils with thickness: (1~6mm, 2~8mm, 3-10mm) and changeable width, and length of finished sheets depend on customer’s practical need.
3. Detail specification of coil CTL line:
| Model | Thickness | Length | Leveling speed | |
| MA-6 x 1600 | 1.0-6.0mm | 600-1600mm | adjustable | Max 40m/min |
| MA-8 x 1800 | 2.0-8.0mm | 1000-1800mm | adjustable | Max 30m/min |
| MA-10x 2000 | 3-10mm | 1000-2000mm | adjustable | Max 30m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each thick plate cut-to-length line (coil CTL line) according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | ||||
4. Advantages & Characteristics for this coil CTL line:
High precision;
Line speed can be up to 30m/min, 7-8pcs/min 2000mm Length sheets in average;
Leveling precision: ±1mm/㎡;
Sheet length precision: ±0.5mm/m;
Sheet diagonal length precision: ±0.5mm/m;
5. Our service:
Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.
6. Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
