Product Details:
|
| Description Machine: | Steel Coil Cutting Machine Cut To Length Steel Coil Shearing Line | Quality Guarantee: | One Year After Shipping |
|---|---|---|---|
| Strip Thickness Of Coil CTL Line: | 3~10mm | Strip Width: | 800~1800mm, 1000-2000mm |
| Leveling Roller: | Φ200 | Material Of Leveling Roller:: | 40Cr, HRC55-58 |
| Power For Leveling: | 110KW/132KW DC Motor + Eurothem 590 DC Speed Control. | Cutting Speed: | (0~30) M/min, Adjustable |
| Voltage: | 380V 50Hz 3phases Or Order By The User | Machine Color: | It’s Order By The User Or By Our Standard |
| After Service: | Avalible On Any Local China Working Time | ||
| High Light: | 2000mm aluminum cut to length machine,3-10mm aluminum cut to length machine,ISO aluminum cut to length line |
||
1. Product desctiption:

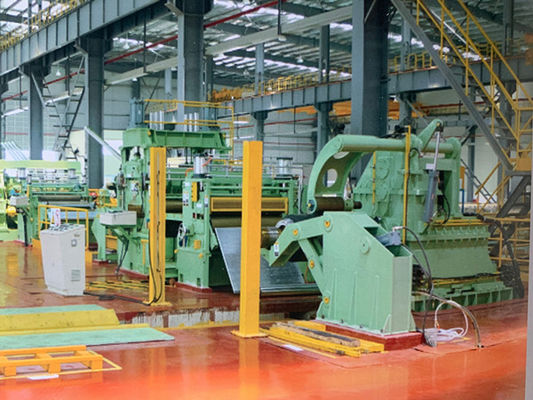

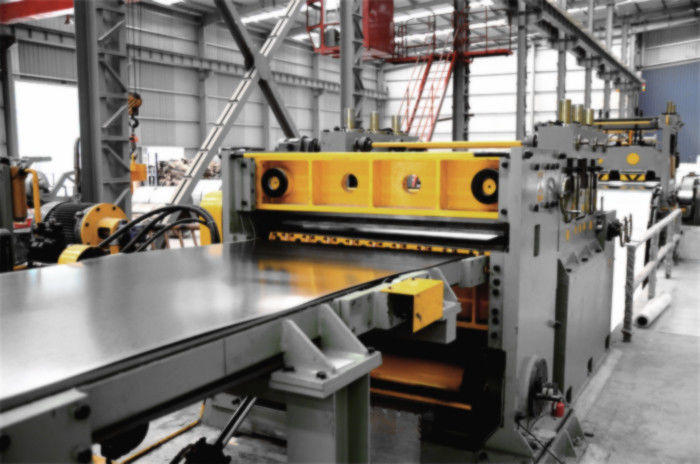

Middle Thick sheet Cut to Length of line with Servo drive special for high precision aluminum plate.
2. Detail specification of coil CTL line:
| Model | Thickness | Length | Leveling speed | |
| MA-6 x 1600 | 1.0-6.0mm | 600-1600mm | adjustable | Max 40m/min |
| MA-8 x 1800 | 2.0-8.0mm | 1000-1800mm | adjustable | Max 30m/min |
| MA-10x 2000 | 3-10mm | 1000-2000mm | adjustable | Max 30m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each thick plate cut-to-length line (coil CTL line) according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | ||||
3. Our service:
Designing:After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.
4. Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
5. Main features:
1. We can make and design all kinds of special machine according to customer's requests.
2. This is a very perfect and durable equipment. We have more than 10 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
6. Our loading photos as reference:
