Product Details:
|
| Product Name: | Middle Thick Sheet Cut To Length Of Equipment ,model MA- (2-8)×1250mm/ 1500mm/2000mm | Input Material: | CR, HR Carbon Steel Coils, GI, PPGI Steel Plates |
|---|---|---|---|
| Strip Thickness: | 2~8mm | Strip Width Of Coil CTL Line: | 1000mm~1800mm |
| Leveling Precision: | ±1mm/㎡ | Material Of Leveling Roller: | 40Cr, HRC56-58 |
| Cutting Speed: | (0~30) M/min, Adjustable | Color: | As Our Standard Or Order By User |
| High Light: | Steel Cut To Length Line 30m/Min,HRC56 Steel Cut To Length Line,PPGI Steel Cut To Length Line |
||
1. Product name:

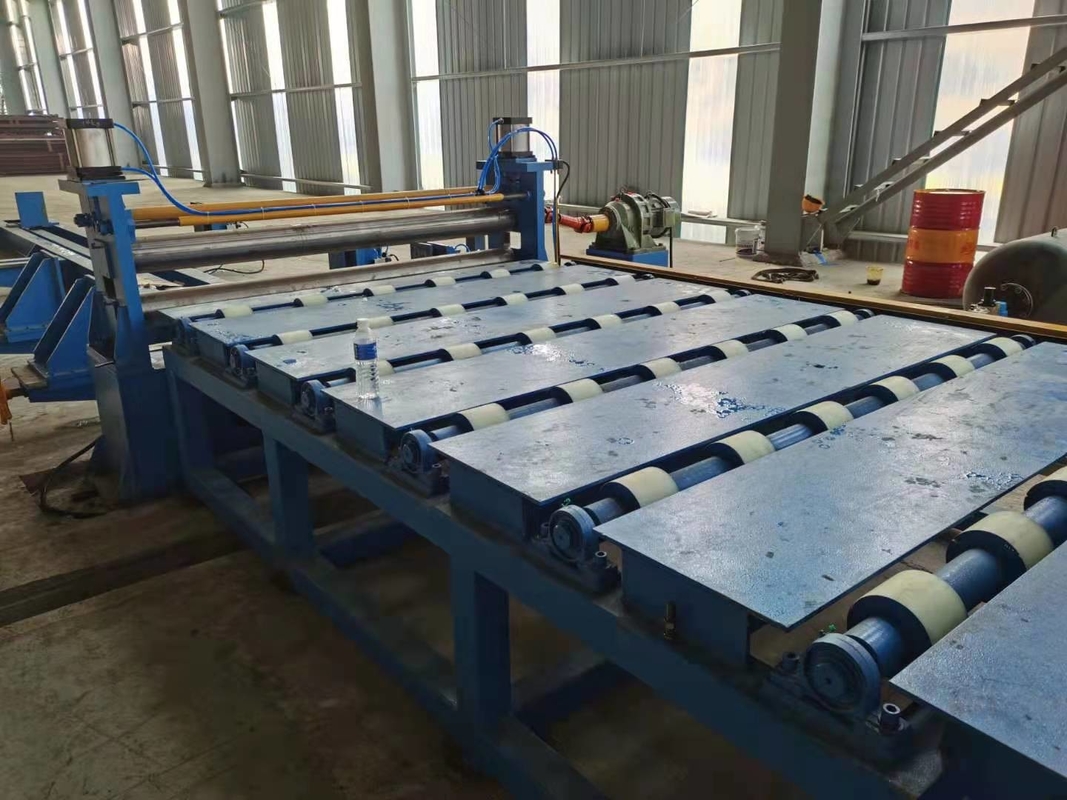

MA-8 x 1800 Steel Cut To Length Line, Max. 30m/min, 7-8pcs/min
2. Introduction:
Middle thick plate cut-to-length line can meet customer’s request of max line speed 40m/min by uncoiling & leveling a coil strip, and then shearing the leveled flat strip to certain length of sheets.
This coil CTL line is especially suitable for CR, HR carbon steel coils, GI, PPGI steel plates.

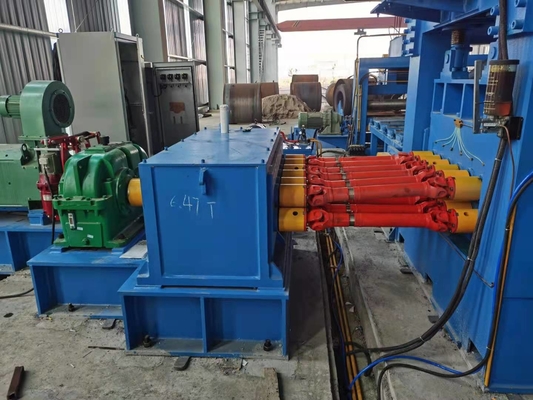

The plate cut-to-length line (coil CTL line) has one leveling machine driven by DC or AC motor, and the length-fixing is by encoder, shearing style is stop-shear.
The middle thick plate cut-to-length line fit steel coils with thickness: (1~6mm, 2~8mm, 3-10mm) and changeable width, and length of finished sheets depend on customer’s practical need.
3.Detail specification of coil CTL line:
| Model | Thickness | Length | Leveling speed | |
| MA-6 x 1600 | 1.0-6.0mm | 600-1600mm | adjustable | Max 40m/min |
| MA-8 x 1800 | 2.0-8.0mm | 1000-1800mm | adjustable | Max 30m/min |
| MA-10x 2000 | 3-10mm | 1000-2000mm | adjustable | Max 30m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each thick plate cut-to-length line (coil CTL line) according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | ||||
4. Advantages & Characteristics for this coil CTL line:
High precision;
Line speed can be up to 30m/min, 7-8pcs/min 2000mm Length sheets in average;
Leveling precision: ±1mm/㎡;
Sheet length precision: ±0.5mm/m;
Sheet diagonal length precision: ±0.5mm/m;
5. Packaging:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: MAZS have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
