Product Details:
|
Description Of Goods: | Atomatic Mini Slitting Machine | Leveling Precision: | ±1mm/㎡ |
---|---|---|---|
Sheet Length Precision: | ±0.5mm/m | Sheet Diagonal Length Precision: | ±0.5mm/m |
Voltage: | 380V 50Hz 3phases Or Order By The User | Color: | As Our Standard Or Order By User |
Quality Guarantee: | One Year After Shipping | ||
High Light: | 1600mm steel coil cut to length line,80m/min steel coil cut to length line,Steel Coil CTL machine |
1. Description of goods:
Coil cut to length line with Hydraulic system for high cutting speed Servo motor control.
2. Introduction:

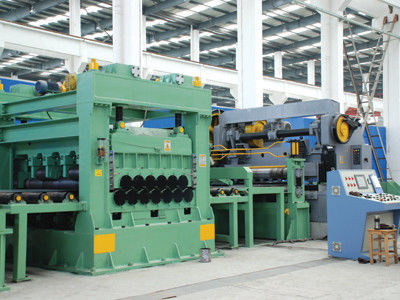

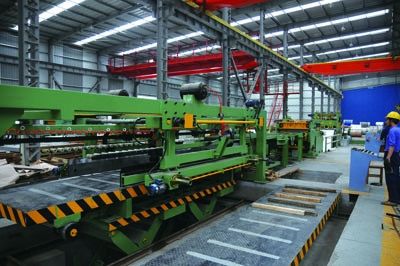

This high-speed cut-to-length line is able to uncoil & level a coil strip, and then shear the leveled flat strip to certain length of sheets at line speed of max 100m/min. It is referred as coil strip CTL machine in general place. This CTL machine is suitable for thin sheet or thin coil cut-to-length.
The high speed cut-to-length line adopts servo length-fixing and pneumatically mechanical shearing to make sure sheet length precision and clean shearing notch.
The high speed CTL line (coil strip CTL machine) fit steel coils with thickness: (0.2-2mm, 0.3-3mm, 0.6-4mm, or 1-5mm) and changeable width and length of finished sheets depend on customer's practical need.
3. Advantages and Characteristics of Coil Strip CTL Machine:
1. Fast speed and high precision
Line speed can be up to 100m/min, 25-30pcs/min 2000mm Length sheets in average.
Leveling precision: ±1mm/㎡
Sheet length precision: ±0.5mm/m
Sheet diagonal length precision: ±0.5mm/m
Detail specification: Model | thickness | Length | Leveling speed | |
MA-2 x 1000 | 0.2-2.0mm | 400-1000mm | adjustable | Max 100m/min |
MA-3 x 1250 | 0.3-3.0mm | 500-1250mm | adjustable | Max 100m/min |
MA-4 X 1500 | 0.6-4mm | 500-1500mm | adjustable | Max 80m/min |
MA-5x1600 | 1-5mm | 500-1600mm | adjustable | Max 80m/min |
Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us. |
