Product Details:
|
| Coil Material: | δs≤230N/mm²,Cold-rolled Coil,Stainless Steel Coil,Galvanized Coil,AL,Copper | Coil Thickness: | 0.5-4.0mm |
|---|---|---|---|
| Coil Width: | 800-1600/1800mm | Coil Weight: | ≤25T(30T) Φ508 & Φ610mm |
| Coil I.D: | Φ508mm | Coil O.D: | ≤Φ2000mm |
| Linear Speed: | 0-60m/min | Control System: | PLC Automatic Control |
| Cutting Range: | 300-4000mm | Cutting Accuracy Roller Diameter: | ±05mm Φ100（80） |
| Voltage: | 380V 50Hz 3phases Or Order By The User | Color: | As Our Standard Or Order By User |
MA 4X1800mm Automation for old-rolled Coil Cut –To-Length Blacking Lines with High-precision
1.General Introduction:
This production line is used for coil with different specifications, through uncoiling, leveling and cutting to length to flattened plate as needed length and width.
2.Detailed technical parameter:
| Model | MA-1.2 | MAZS-2.0 | MA-3.0 | MA-4.0 |
| Coil Material | δs≤230N/mm²,Cold-rolled Coil,Stainless Steel Coil,Galvanized Coil,AL,Copper | |||
| Coil Thickness | 0.11-1.2mm | 0.2-2.0mm | 0.3-3.0mm | 0.5-4.0mm |
| Coil Width | 300-800mm | 800-1250mm | 800-1250/1600mm | 800-1600/1800mm |
| Coil Weight | ≤10T | ≤20T |
≤20T(25T) Φ508 & Φ610mm |
≤25T(30T) Φ508 & Φ610mm |
| Coil I.D | Φ508mm | Φ508mm | Φ508mm | Φ508mm |
| Coil O.D | ≤Φ1800mm | ≤Φ1800mm | ≤Φ2000mm | ≤Φ2000mm |
| Cutting Range | 300-3000mm | 300-4000mm | 300-4000mm | 300-4000mm |
|
Cutting Accuracy Roller Diameter |
±0.3mm Φ65(50) |
±0.3mm Φ65(50) |
±05mm Φ85(65) |
±05mm Φ100(80) |
| Linear Speed | 0-60m/min | 0-60m/min | 0-60m/min | 0-60m/min |
| Control System | PLC Automatic control | PLC Automatic control | PLC Automatic control | PLC Automatic control |
3.Production line flowing chart:

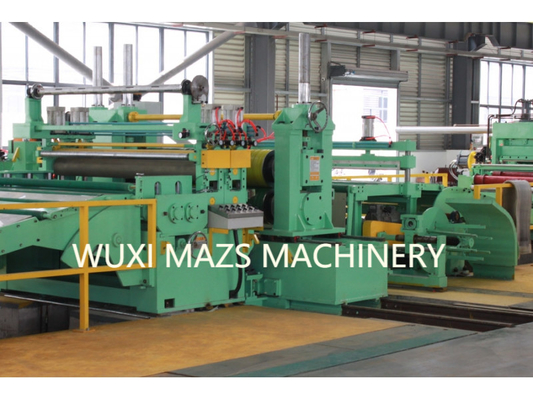

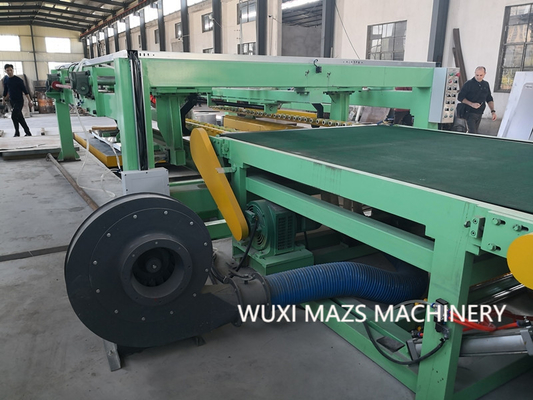

4.Machine Photo for reference:
5. What service we can get from your company?
- VIP Service. Due to our standards, we manage to build long-lasting relationships with all our customers.
We are 24/7 online available for you to answer your questions and solve your problems.
6. Quality Inspection
The machines of our company have many certificates like ISO 9001, CE, SGS, etc.
Before the shipping, we have a series of quality check system, includes 3 times of inspection for every production procedure. First inspection needs the workers to check and sign on the test report. Second inspection involves department leaders to check and sign on the test report. The Third inspection needs professional inspector to check and ensure the machines are qualified.
We also give 12 month warranty time to the customer.
