Product Details:
|
| Coil Material: | δs≤230N/mm²,Cold-rolled Coil,Stainless Steel Coil,Galvanized Coil,AL,Copper | Coil Thickness: | 0.3-3.0mm |
|---|---|---|---|
| Coil Width: | 800-1600/1800mm | Coil Weight: | ≤20T（25T） Φ508 & Φ610mm |
| Coil I.D: | Φ508mm | Coil O.D: | ≤Φ2000mm |
| Linear Speed: | 0-60m/min | Control System: | PLC Automatic Control |
| Voltage: | 380V 50Hz 3phases Or Order By The User | Color: | As Our Standard Or Order By User |
MA 3X1600mm Automation for Stainless Steel Cut –To-Length Blacking Lines with High-precision
1.General Introduction:
This production line is used for coil with different specifications, through uncoiling, leveling and cutting to length to flattened plate as needed length and width.

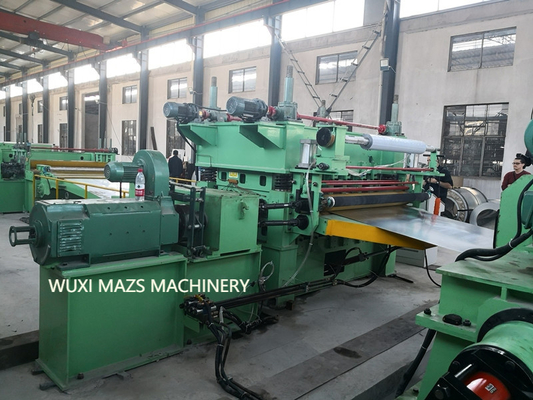

Composed of coil car, double support un-coiler, pre-leveler, finish-leveler, length gauge, cut to length machine, stacker, servo driven system, etc. as well as pendulum middle bridge, pressing and guiding device and steering device.
2.Advantages and Characteristics of Sheet CTL Line:
1.) High precision
Leveling precision: ±1mm/㎡
Sheet length precision: ±0.5mm/m
Sheet diagonal length precision: ±0.5mm/m
2.) To make flat steel sheets, the diameter of leveling rollers should be scientifically proper, we confirm diameter of leveling rollers by actual experiences and engineering calculation.
3.) Automatically piling-up bracket can receive finished sheets and automatically pile them up orderly.
4.) Hole accumulator between decoiling and leveling, is necessary to protect sheet surface and make sure the simultaneously work of decoiling and leveling.
3.Detailed technical parameter:
| Model | MA-1.2 | MAZS-2.0 | MA-3.0 | MA-4.0 |
| Coil Material | δs≤230N/mm²,Cold-rolled Coil,Stainless Steel Coil,Galvanized Coil,AL,Copper | |||
| Coil Thickness | 0.11-1.2mm | 0.2-2.0mm | 0.3-3.0mm | 0.5-4.0mm |
| Coil Width | 300-800mm | 800-1250mm | 800-1250/1600mm | 800-1600/1800mm |
| Coil Weight | ≤10T | ≤20T |
≤20T(25T) Φ508 & Φ610mm |
≤25T(30T) Φ508 & Φ610mm |
| Coil I.D | Φ508mm | Φ508mm | Φ508mm | Φ508mm |
| Coil O.D | ≤Φ1800mm | ≤Φ1800mm | ≤Φ2000mm | ≤Φ2000mm |
| Cutting Range | 300-3000mm | 300-4000mm | 300-4000mm | 300-4000mm |
|
Cutting Accuracy Roller Diameter |
±0.3mm Φ65(50) |
±0.3mm Φ65(50) |
±05mm Φ85(65) |
±05mm Φ100(80) |
| Linear Speed | 0-60m/min | 0-60m/min | 0-60m/min | 0-60m/min |
| Control System | PLC Automatic control | PLC Automatic control | PLC Automatic control | PLC Automatic control |
4.Production line flowing chart:
5.Our service
Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.
Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
6. What service we can get from your company?
- VIP Service. Due to our standards, we manage to build long-lasting relationships with all our customers.
We are 24/7 online available for you to answer your questions and solve your problems.
7. Quality Inspection
The machines of our company have many certificates like ISO 9001, CE, SGS, etc.
Before the shipping, we have a series of quality check system, includes 3 times of inspection for every production procedure. First inspection needs the workers to check and sign on the test report. Second inspection involves department leaders to check and sign on the test report. The Third inspection needs professional inspector to check and ensure the machines are qualified.
We also give 12 month warranty time to the customer.
