Product Details:
|
| Description Of Goods: | Steel Coil Slitting And Cutting To Length Machine | Strip Thickness: | 5~20mm |
|---|---|---|---|
| Plate CTL Machine Strip Width: | 800~1800mm, 1000-2000mm, 1100-2500mm | Leveling Roller: | Φ230, 9pcs |
| Material Of Leveling Roller: | 40Cr, HRC54-55 | Plate CTL Machine Cutting Speed: | (0~20) M/min, Adjustable |
| Voltage: | 380V 50Hz 3phases Or Order By The User | Color: | As Our Standard Or Order By User |
| High Light: | 5-20mm heavy gauge cut to length line,20m/min heavy gauge cut to length line,2000mm plate CTL line |
||
1. Description of goods

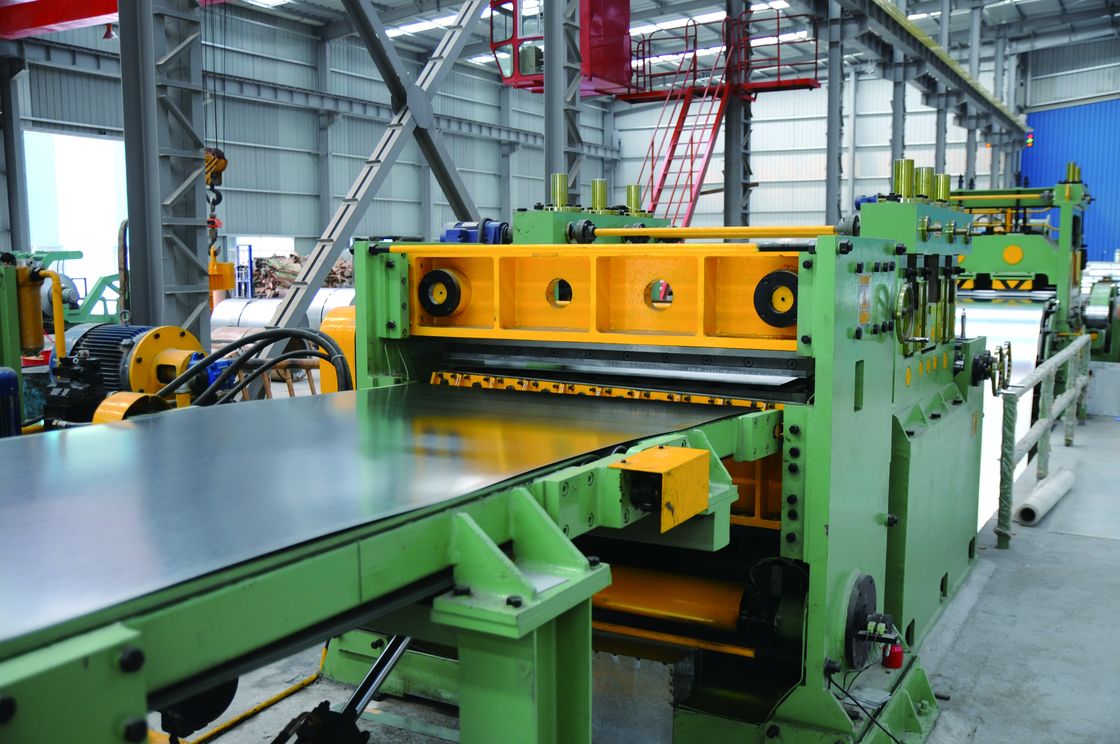

MA-(5-20)×1800mm/2000mm/2500mm Thick Plate Cut to Length Line heavy type leveling mainly machine
2. Advantages & Characteristics of Plate CTL Machine:
1. Plate CTL Machine with High precision
Line speed can be up to 20m/min, 4-5pcs/min 2000mm Length sheets in average.
Leveling precision: ±1.5mm/㎡
Sheet length precision: ±0.5mm/m
Sheet diagonal length precision: ±1mm/m
Input material: CR, HR carbon steel coils, GI, PPGI steel plates.
3. Technical parameter:
Strip thickness: 5~20mm
Plate CTL Machine Strip width: 800~1800mm, 1000-2000mm, 1100-2500mm
Leveling roller: Φ230, 9pcs
Material of leveling roller: 40Cr, HRC54-55
Power for leveling: 110KW+160KW DC motor + Eurothem 590 DC speed control.
Plate CTL Machine Cutting speed: (0~20) m/min, adjustable.
| Detail specification: Model | Thickness | Length | Leveling speed | |
| MA-12 x 1600 | 3-12mm | 600-1600mm | adjustable | Max 20m/min |
| MA-16 x 1800 | 4-16mm | 1000-1800mm | adjustable | Max 20m/min |
| MA-20 X 2000 | 5-20mm | 1000-2000mm | adjustable | Max 20m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each thick plate cut-to-length line,plate CTL machine according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | ||||
