Product Details:
|
| Description Machine: | High Speed Steel Coil Slitting Line/Cut To Length Machine | Quality Guarantee: | One Year After Shipping |
|---|---|---|---|
| Strip Thickness Of Coil CTL Line: | 3~10mm | Strip Width: | 800~1800mm, 1000-2000mm |
| Leveling Roller: | Φ200 | Material Of Leveling Roller:: | 40Cr, HRC55-58 |
| Power For Leveling: | 110KW/132KW DC Motor + Eurothem 590 DC Speed Control. | Cutting Speed: | (0~30) M/min, Adjustable |
| Voltage: | 380V 50Hz 3phases Or Order By The User | Machine Color: | It's Order By The User Or By Our Standard |
| After Service: | Avalible On Any Local China Working Time | ||
| High Light: | 3-10mm Steel Cut To Length Line,1800mm Steel Cut To Length Line,380V cut to length systems |
||

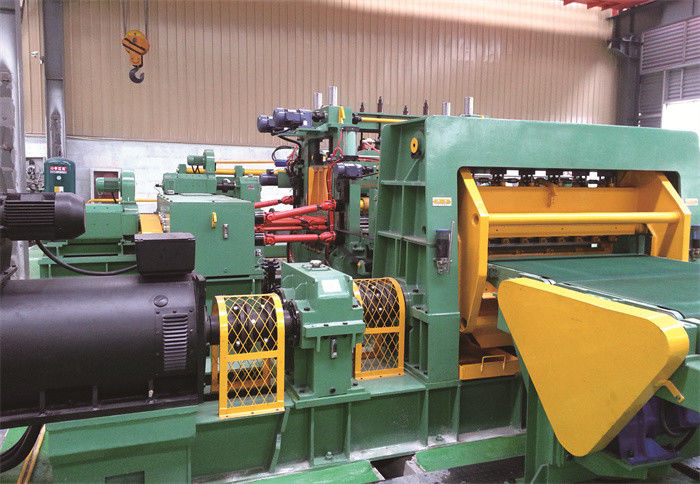

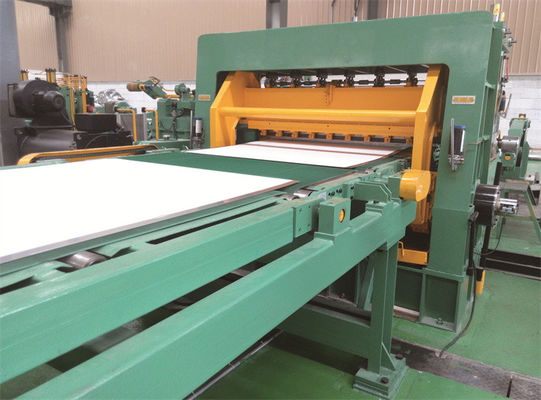

1. Product description:
MA-(3-10)×1800mm/2000mm Cut to Length Line of technical parameter
2. Detail specification of coil CTL line:
| Model | Thickness | Length | Leveling speed | |
| MA-6 x 1600 | 1.0-6.0mm | 600-1600mm | adjustable | Max 40m/min |
| MA-8 x 1800 | 2.0-8.0mm | 1000-1800mm | adjustable | Max 30m/min |
| MA-10x 2000 | 3-10mm | 1000-2000mm | adjustable | Max 30m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each thick plate cut-to-length line (coil CTL line) according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | ||||
3. Our service:
Designing: After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.
4. Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.

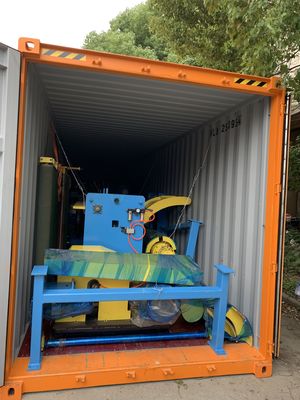

5. Our loading photos as reference:
