Product Details:
|
| Material Of Coils:: | HRC, CRC, GI, PPGI, ST37, ST52..... | Strip Thickness:: | (0.3-2) Mm |
|---|---|---|---|
| Max. Strip Width:: | 200-600mm | Coil ID:: | ≥Φ508mm |
| Coil OD:: | Max.Φ1600mm | Max. Coil Weight:: | 6000Kgs |
| Quality Guarantee: | One Year | Voltage: | 380V 50Hz 3phases Or Order By The User |
1. Product name
MA-(0.3-2)×600mm High Speed Precision Slitting Line coil with different size to small strips
2. General Introduction:
MAZS Carbon Steel Galvanized Steel Coil Slitting Equipment is designed and built to the highest accuracy, efficiency and performance for processing various kinds of metal materials, processing with the slitting the coil with different size to small strips . MA-(0.3-2)×600mm high speed high precision slitting Line is with high precision high speed and high efficiency. This line is a light line which has low investment and suitable for small or middle factories.
3. Detailed technical data for MA-(0.3-2)×600mm High Speed High Precision Slitting Line :
| NO. | Item | Parameters |
| 1 | Applicable material | Carbon steel Q195 Q235 Q345 |
| 2 | Thickness of material | 0.3-2mm |
| 3 | Material width | 200～600mm |
| 4 | Inner diameter of steel coil | Φ508mm |
| 5 | Outer diameter of steel coil | Max. Φ1600mm |
| 6 | Weight of steel coil | 6T |
| 7 | Thickness of finished product | 0.3-2mm |
| 8 | Inner diameter of finished coil | Φ508 mm |
| 9 | Outer diameter of finished coil | ≤φ2000 mm |
| 10 | Min. slitting width | |
| 11 | Slitting speed | 0-120m/min adjustable. |
| 12 | Cutter knife diameter | D250×d120×T10 |
4. Machine main components:
Feeding trolley- single-arm feeding machine, coil leading device - tilting platform - looper1 - rectification - disc shear - waste scrap winding - looper2 - pre-slitting, tension machine, length measuring roller - recoiling - unloading trolley- hydraulic control - electrical control
5. Production line flowing chart::

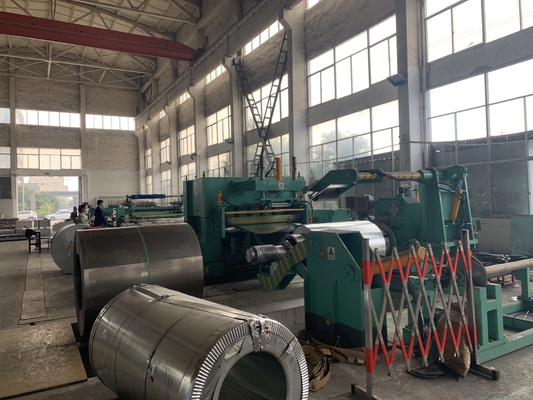

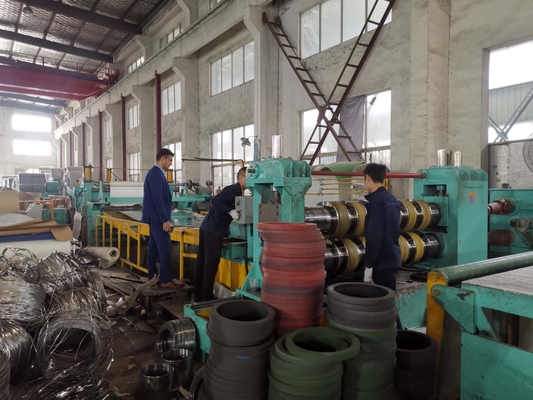

6.processing workshop Photo for reference:
8.Our service
VIP Service. Due to our standards, we manage to build long-lasting relationships with all our customers.
We are 24/7 online available for you to answer your questions and solve your problems.
