Product Details:
|
| Material Of Coils:: | HRC, CRC, GI, PPGI, ST37, ST52..... | Strip Thickness:: | (1-4) Mm |
|---|---|---|---|
| Max. Strip Width:: | 500-1600mm | Coil ID:: | Φ508mm, Φ610mm, Φ760mm |
| Coil OD:: | Max.Φ2000mm | Max. Coil Weight:: | 20T |
| Thickness Of Finished Product: | 1-4mm | Slitting Speed: | Slitting Speed 0 ~ 140m/min Adjustable. |
| Quality Guarantee: | One Year | Voltage: | 380V 50Hz 3phases Or Order By The User |
1. Product name

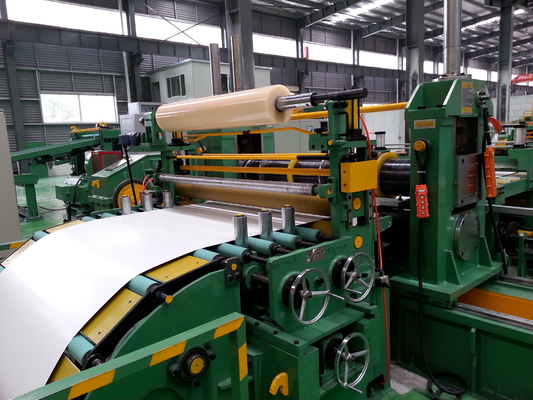

MA-(1-4mm)X1600 Carbon Steel Galvanized Steel Coil Slitting Equipment Made in China
2. General Introduction:
MAZS Carbon Steel Galvanized Steel Coil Slitting Equipment is designed and built to the highest accuracy, efficiency and performance for processing various kinds of metal materials, processing with the slitting the coil with different size to small strips . The production line is with high precision high speed and high efficiency. Our machines are served all over the world..
3. Detailed technical data for MA-(1-4mm)x1600mm HR CR GI PPGI Q195 Q235 Q345 slitting production line :
| NO. | Item | Parameters |
| 1 | Applicable material | HR CR GI PPGI Q195 Q235 Q345 |
| 2 | Thickness of material | 1-4mm |
| 3 | Material width | 500～1600mm |
| 4 | Inner diameter of steel coil | Φ508mm, Φ610mm, Φ760mm |
| 5 | Outer diameter of steel coil | Max. Φ2000mm |
| 6 | Weight of steel coil | 20T |
| 7 | Thickness of finished product | 1-4mm |
| 8 | Inner diameter of finished coil | Φ508 mm |
| 9 | Outer diameter of finished coil | ≤φ2000 mm |
| 10 | Min. slitting width | 4 pieces for 4mm thick, 10 pieces for 2mm thick, 20 pieces for less than 1mm thick |
| 11 | Slitting speed | 0-120m/min adjustable. |
| 12 | Cutter knife diameter | Φ350xΦ230x 15mm |
| 13 | Equipment power | 280KW |

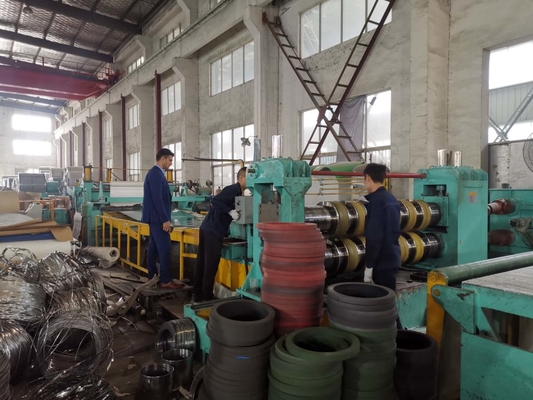

4.processing workshop Photo for reference:
5. Machine main components:
Feeding trolley- single-arm feeding machine, coil leading device - tilting platform - looper1 - rectification - disc shear - waste scrap winding - looper2 - pre-slitting, tension machine, length measuring roller - recoiling - unloading trolley- hydraulic control - electrical control
6.Our service
VIP Service. Due to our standards, we manage to build long-lasting relationships with all our customers.
We are 24/7 online available for you to answer your questions and solve your problems.
