Product Details:
|
| Material Of Coils:: | HRC, CRC, GI, PPGI, ST37, ST52..... | Strip Thickness:: | (0.4-4) Mm |
|---|---|---|---|
| Max. Strip Width:: | 1600mm | Coil ID:: | ≥Φ508mm |
| Coil OD:: | Φ2000mm | Max. Coil Weight:: | 30000Kgs |
| Slitter Motor:: | 75KW DC Motor | Slitter Shaft:: | Ф220 X 1650mm |
| Disc Knives On Slitter Shaft:: | ID220mm X OD330mm X 10mm, 6CrW2Si. | Separating Disc:: | ID85 X OD210mm X 6mm, 65Mn |
1. Product name
MA-(0.4～4)×1600mm High Precision Slitting Line strip width is changeable 600mm. 1000mm, 1250mm, 1600mm, 1800mm
2. General Introduction:
The equipment composition of the High Precision Slitting Line generally includes: uncoiler, guiding device, uncoiling tension device, coil head shearing, feeding table, looper, disc shearing, guiding roller, machine row transfer roller, clamping device, constant tension coiler, scrap rewinding machine, recoiler, etc.
MA-(0.4～4)×1600mm High Precision Slitting Line line is suitable for coil strip thickness (0.4-4)mm; while strip width is changeable: 600mm. 1000mm, 1250mm, 1600mm, 1800mm and so on.
3. Detailed technical data for MA-(0.4～4)×1600mm High Precision Slitting Line:
MA-(0.4～4)×1600mm Slitting Line, domestic
Material of coils: HRC, CRC, GI, PPGI, ST37, ST52.....
Strip thickness: (0.4-4) mm
Max. Strip width: 1600mm
Coil ID: ≥Φ508mm
Coil OD: Φ2000mm
Max. Coil weight: 30000Kgs
Slitter motor: 75KW DC motor
Slitter shaft: Ф220 x 1650mm
Disc knives on slitter shaft: ID220mm x OD330mm x 10mm, 6CrW2Si.
Separating disc: ID85 x OD210mm x 6mm, 65Mn
Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.
Recoiler block: Ф508 x 1700mm
Recoiler motor: 90KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels.
Slitting speed: max 80m/min, adjustable.
4. Machine main components:
Feeding trolley- single-arm feeding machine, coil leading device - tilting platform - looper1 - rectification - disc shear - waste scrap winding - looper2 - pre-slitting, tension machine, length measuring roller - recoiling - unloading trolley- hydraulic control - electrical control.
5. Production line flowing chart::
6.Specification form of MA-(0.4～4)×1600mm High Precision Slitting Line:
| Model | Thickness | Coil width | Coil Weight | Finished slit | Max Slitting speed |
| MA-4 x 1600 | 0.4-4mm | 500-1600mm | Max 30T | Min 30mm | 80m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | |||||

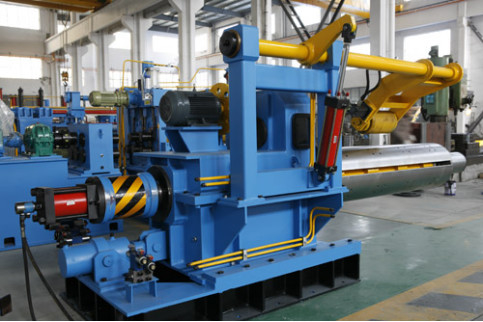

7.Machine Photo for reference:
8.Our service and features:
8.1 Design: MAZS have a matured and experienced technical team with rich experience to develop and design the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. MAZS have more than 20 years experiences in this field.
8.3 This kind of machine has superior quality and reliable service. It has high accuracy and easy operation.
8.4 MAZS supply technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 VIP Service. Due to our standards, we manage to build long-lasting relationships with all our customers.
We are 24/7 online available for you to answer your questions and solve your problems.
