MA-(0.3-2)×1300mm Metal Coil Slitter for Iran market with high speed for thickness 0.3-2mm

1. Product name

MA-(0.3-2)×1300mm Metal Coil Slitter for Iran market with high speed for thickness 0.3-2mm

2. General Introduction:

The slitting line is also called steel coil slitting equipment, slitting machine, strip slitting machine, and slitter. It is mainly used for slitting and cutting coils such as tinplate, galvanized steel, silicon steel sheet, CR cold-rolled steel strip, stainless steel strip, aluminum strip, and steel strip. It cuts metal coils into strips of various widths which is required, and then recoil the strips into small coils for the next process. It is a necessary equipment for precision cutting and slitting for transformers, motor industries and other metal strips industries.

Thin sheet slitting line is suitable for coil strip thickness (0.2~1) mm, (0.3-2) mm, (0.3-3) mm and (0.4-4)mm; while strip width is changeable: 600mm. 1000mm, 1250mm, 1600mm, 1800mm and so on.

3. MA-(0.3-2)×1300mm Metal Coil Slitter in for Iran market:

Material of coils: carbon steel, stainless steel, galvanized plate, colored steel plate
Strip thickness: (0.3-2) mm
Max. Strip width: 1300mm
Inner diameter of coils: ≥Φ508mm
Outer diameter of coils: Φ1800mm
Max. Coil weight: 15000Kg
Slitter motor: 55KW DC motor
Slitter shaft: Ф205 x 1400mm
Disc knives on slitter shaft: ID205mm x OD310mm x 10mm, 6CrW2Si(H13, SKD-11).
Separating disc: ID75 x OD180mm x 6mm, 65Mn
Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.
Recoiler block: Ф508 x 1400mm
Recoiler motor: 75KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels.
Slitting speed: max 80m/min, adjustable.

4. Machine main components:

Feeding trolley- single-arm feeding machine, coil leading device - tilting platform - looper1 - rectification - disc shear - waste scrap winding - looper2 - pre-slitting, tension machine, length measuring roller - recoiling - unloading trolley- hydraulic control - electrical control

5. Production line flowing chart::

6.Specification form of Metal Coil Slitter:

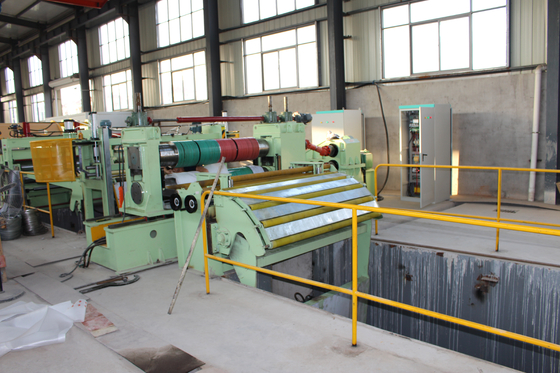

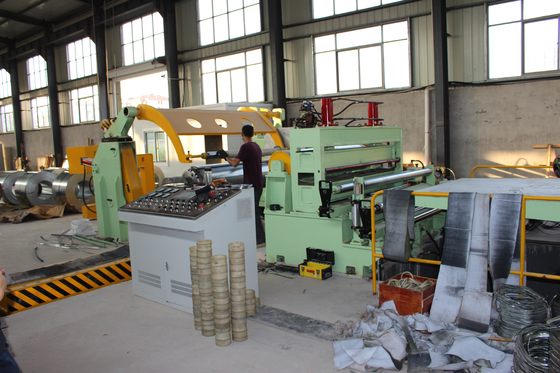

7.Machine Photo for reference:

8.Our service and features:
8.1 Design: MAZS have a matured and experienced technical team with rich experience to develop and design the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. MAZS have more than 20 years experiences in this field.
8.3 This kind of machine has superior quality and reliable service. It has high accuracy and easy operation.
8.4 MAZS supply technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality reasonable price and reliable service, quick action for after sale service.
