Product Details:
|
| Raw Material: | Hot Rolling Or Cold Rolling Steel | Coil Width: | 50~160mm |
|---|---|---|---|
| Coil Outer Diameter: | Max. Φ1600mm | Coil Inner Diameter: | Φ508mm |
| Coil Weight: | Max.2.5T | Material Thickness: | 0.5~2.0mm For Round Pipes |
| Rectangle Pipe Size: | ≤1.5mm For Square & Rectangle Pipes | Producing Length: | Can Be Designed By Customer Request |
| Producing Speed: | 30~80m/min | Warranty Term: | 12 Months (excluding Easy-broken Parts) |
| High Light: | High Frequency 160mm Welded Pipe Mill,80m/min Welded Pipe Mill,High Frequency Welded Pipe Mill Hot rolling |
||
1.Description of goods:
30~80m/min High Frequency Welded Pipe Mill Machine
This high-frequency welding pipe mill is specialized equipment to produce high frequency straight seam welded pipes for structural pipe and industrial pipe withΦ16mm~Φ50mm and wall thickness of 0.5~2.0mm. Through optimization design, best materials choice, and accurately fabrication and rolls, the whole line can be reached high precision and high speed. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted.
2.work process
Uncoiling→ Leveling & Straightening→ Accumulating→ Leveling→ Forming→ HF welding→ Deburring (outer) → Cooling→ Sizing→ Straightening→ Cutting→ Discharging
3.Output product scope:
² Pipe type: Straight seam high frequency welded pipes
² Pipe purpose: Electric heating tube, fridge pipe, Auto car pipe, sporting facility tube, furniture pipe, cooler pipe, pressure feeding pipe, construction pipe, configuration pipe.
² Round pipe size: Φ16mm~Φ50mm * 0.5mm~2.0mm
² Square pipe size: 15×15mm~40×40mm * 0.5mm~1.5mm
² Rectangle pipe size:10×15mm~30×50mm * 0.5mm~1.5mm (a:b≤2:1)
² Producing length: 4~10m (can be designed by customer request)
² Cutting length precision: ±3mm (by hot frication computer saw)
| Model No. | MA114 | MA125 | MA165 | MA219 |
| Outer diameter | Φ40~114 MM | Φ50~130 MM | Φ76~165 MM | Φ89~219 MM |
| Wall thickness | 1.2~4.0 mm | 2.0~5.0 mm | 2.0~6.0 mm | 3.0~6.0 mm |
| Production speed | 0~70 m/min. | 0~60 m/min. | 0~50 m/min. | 0~50 m/min. |
| Driving motor power | 132 Kw*2 sets | 160 +200 Kw | 200 Kw*2 sets | 200 Kw*3 sets |
| HF welder power | 300 KW | 400 KW | 500 KW | 500 KW |

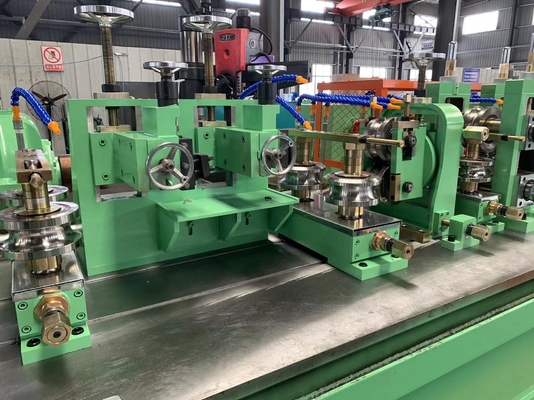

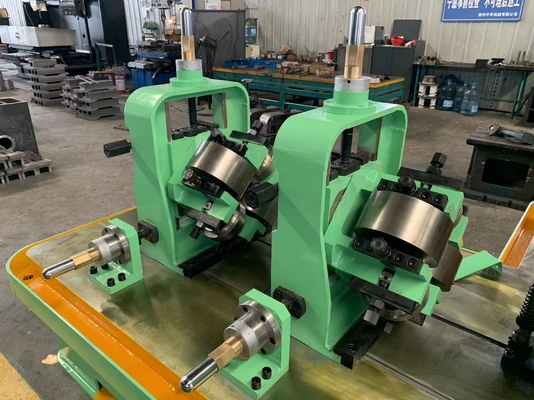

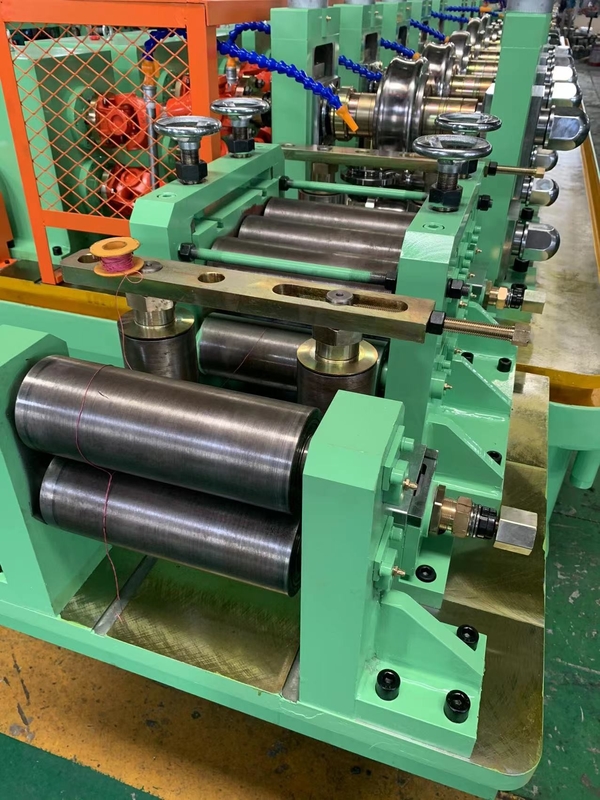

4. Photos for reference:
5.Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Our service and features:
6.1 Design: We have a mature technical team with rich experience in developing and designing the machines according to customer's demands and requirements.
6.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
6.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
6.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
6.5 Our product has been exported to many regions and won high reputation because of good quality and reasonable price.
