Product Details:
|
| Description: | High Frequency Welded Pipe Mill | Applicable Material: | Hot Rolling Or Cold Rolling Steel |
|---|---|---|---|
| Round Pipe Size: | Φ16mm~Φ50mm * 0.5mm~2.0mm | Square Pipe Size: | 15×15mm* 0.5mm~1.5mm |
| Rectangle Pipe Size: | 10×15mm * 0.5mm~1.5mm | Producing Length: | 4~10m |
| Cutting Length Precision: | ±3mm | Producing Speed: | 30~60m/min |
| High Light: | HF Tube Mill Line,60m / minWelded Pipe Mill,HF 10m Welded Tube Mill Line |
||
1. Product Description:
φ16~φ50mm HF Tube Mill Line for Round and Square Pipe
This high-frequency welding pipe mill is specialized equipment to produce high frequency straight seam welded pipes for structural pipe and industrial pipe withΦ16mm~Φ50mm and wall thickness of 0.5~2.0mm. Through optimization design, best materials choice, and accurately fabrication and rolls, the whole line can be reached high precision and high speed. Within suitable range of pipe diameter and wall thickness, pipe production speed can be adjusted.
2. Work process:
Uncoiling→ Leveling & Straightening→ Accumulating→ Leveling→ Forming→ HF welding→ Deburring (outer) → Cooling→ Sizing→ Straightening→ Cutting→ Discharging
3. Technical Parameters:
| Model No. | MA114 | MA125 | MA165 | MA219 |
| Outer diameter | Φ40~114 MM | Φ50~130 MM | Φ76~165 MM | Φ89~219 MM |
| Wall thickness | 1.2~4.0 mm | 2.0~5.0 mm | 2.0~6.0 mm | 3.0~6.0 mm |
| Production speed | 0~70 m/min. | 0~60 m/min. | 0~50 m/min. | 0~50 m/min. |
| Driving motor power | 132 Kw*2 sets | 160 +200 Kw | 200 Kw*2 sets | 200 Kw*3 sets |
| HF welder power | 300 KW | 400 KW | 500 KW | 500 KW |

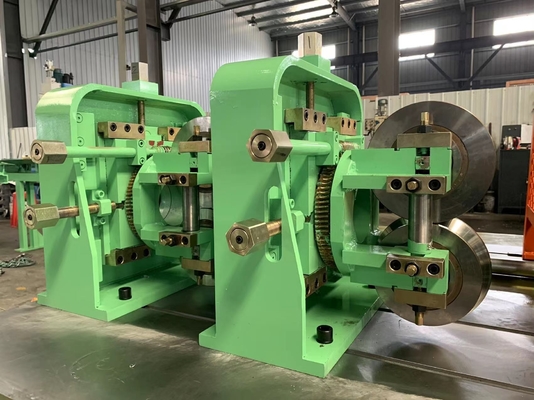

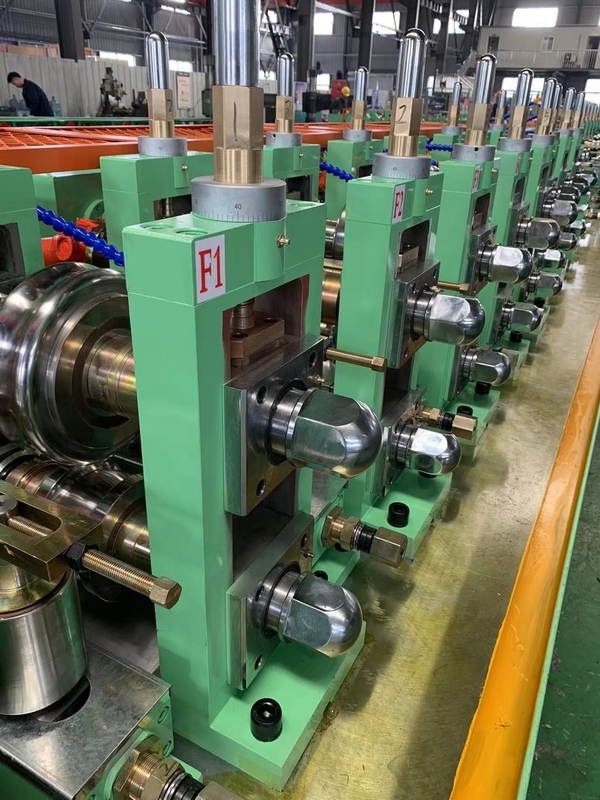

4. Photos for reference:
5. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: We have a mature technical team with rich experience in developing and designing the machines according to customer's demands and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of good quality and reasonable price.
