Product Details:
|
| Description: | Cut To Length Line | Material Of Coils: | Ordinary Carbon Plate |
|---|---|---|---|
| Strip Thickness: | 4.0 ~ 12.0mm | Strip Width: | 900 ~ 2000mm |
| Sizing Accuracy: | ≤± 2.0mm/2M | Line Speed: | ≤25m/min |
| Leveling Precision: | ≤ 1mm/m2 | Total Power Of Unit: | 220kw |
| Center Height Of The Unit: | 800mm | ||
| High Light: | 380V Metal Cut To Length Line,25m/Min Metal Cut To Length Line,Carbon Plate Steel Coil Cutting Line |
||
1. Product description:
380V Metal Cut To Length Line For Ordinary Carbon Plate MA-12×2000 with stably speed and quality
2. Equipment composition
| Hydraulic loading coil car | Hydraulic double-cone decoiler |
| Hydraulic guider | Feeding pre-leveller |
| Transition table | Left/Right positioning device |
| Leveling machine | Tail sheet feeder |
| Cut-to-length work table | Hydraulic shearing machine |
| Thrower | Stacking table |
| Hydraulic pneumatic system | Electrical control system |
3. Advantages and Characteristics of Cut-To-Length Line:
3.1 Fast speed and high precision
3.2 Thin coils differ in coil weight, when max coil weight is small, usually single mandrel (cantilever) uncoiler for this sheet cut-to-length line (sheet CTL line) is adopted.
3.3 To make flat steel sheets, the diameter of leveling rollers should be scientifically proper, we confirm diameter of leveling rollers by actual experiences and engineering calculation.
3.4 Automatically piling-up bracket can receive finished sheets and automatically pile them up orderly.
3.5 Hole accumulator between decoiling and leveling, is necessary to protect sheet surface and make sure the simultaneously work of decoiling and leveling.
4. Technical performance and parameters of unit
a. Applicable leveling material: ordinary carbon plate
b. Applicable leveling sheet thickness: 4.0 ~ 12.0mm
c. Applicable leveling width: 900 ~ 2000mm
d. Machine feed clear width: 2100mm
e. Applicable inner diameter of drum plate : Ф 508mm- Ф 760mm
f. Applicable outer diameter of drum plate : Ф 1100~ Ф 2000mm
g. Applicable drum plate weight: ≤ 35 t
h. Stacking length: ≤ 8000mm (any fixed length)
i. Sizing accuracy: ≤± 2.0mm/2M
j. Diagonal accuracy: ≤± 2.0mm/2M
k. Leveling accuracy: ≤ 1mm/m2 (corrugated and other defective plates are not included in the assessment scope)
l. Operating speed of unit: Vmax ≤ 25m/min. (adjustable)
(actual number of shear plate pieces: 3 pieces / min, calculated by piece length of 6000mm)
m. Total power of unit: ~ 220kw
n. Center height of the unit: 800mm

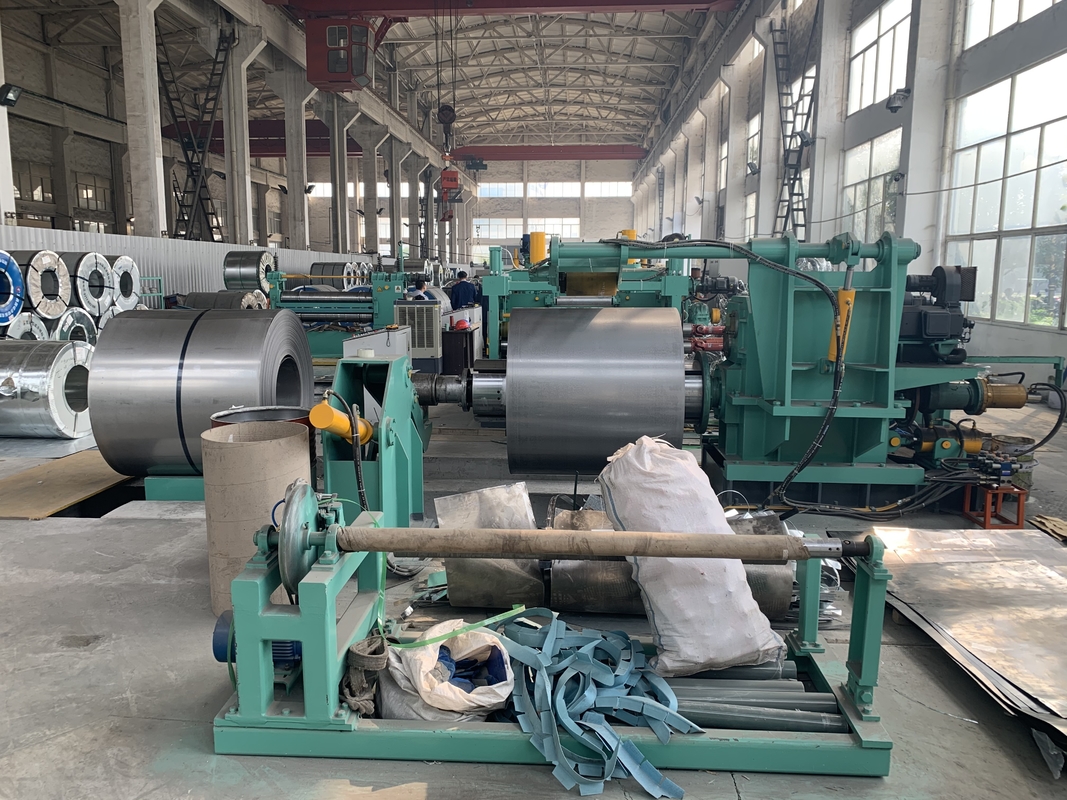

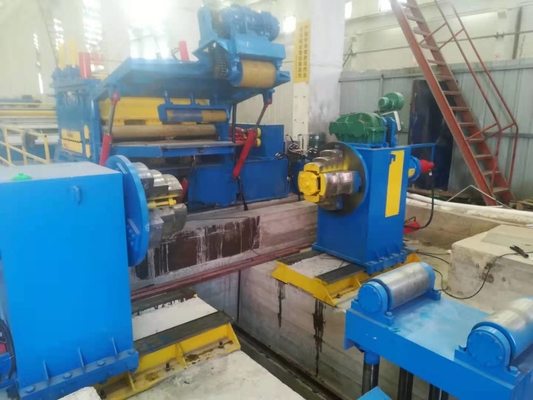

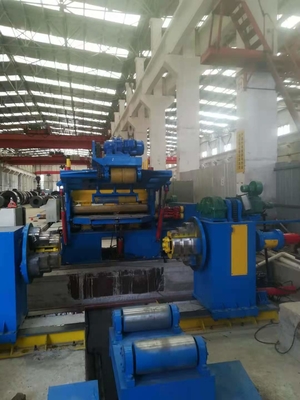

5. Photo for reference:
6. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
7. Warranty term: 12 months (excluding easy-broken parts)
8. Our service and features:
8.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
