Product Details:
|
| Description Of Goods: | Thin Sheet Cut To Length Line To Process Cold-rolled Steel, Hot-rolled Steel, Carbon Steel, Stainless Steel, Galvanized | Strip Thickness: | 0.3~3mm |
|---|---|---|---|
| Strip Width: | 300~1600mm | Max.coil Weight:: | 15000kg |
| Voltage:: | 380V 50Hz 3phases | Quality Guarantee: | One Year |
| Material Of Coils: | CR Galvanized Steel Plate, Carbon Steel And Etc. | Color: | As Our Standard Or Order By User |
| High Light: | ISO Metal Cut To Length Line,0.3-3mm Metal Cut To Length Line,380V steel cut to length machine |
||
1. Description of goods:

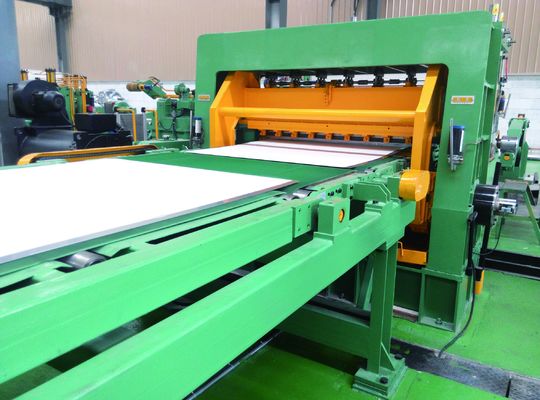

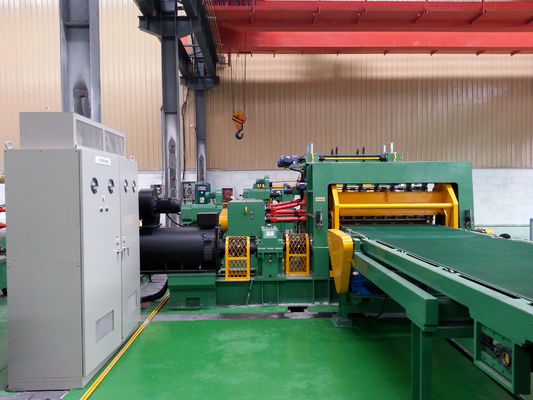

Metal Sheet Cut To Length line for Longitudinal cut for thickness 0.3-3mm,Max coil 15T by PLC control
2. Application:
The thin sheet cut to length line apply to process cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and the various metal materials.
The thin sheet cut to length line is also divided into two kinds, due to different material of coils strip thickness, strip width, cutting speed and material of disc cutter.
3. The detail specification as follows:
Material of coils: CR galvanized steel plate, carbon steel and etc.
Strip thickness: 0.3-3mm
Strip width: 300-1600mm
Inner diameter of coils: Φ480-520mm.
Max.outer diameter of coils: Φ900-1800mm
Max.coil weight: 15000kg
Uncoiling mandrel: Ф508×1700mm
Leveling roller: Φ85
Material of leveling roller: 40Cr
Material of disc cutter: 6CrW2Si
Recoiling spindle: Φ508×750mm
Cutting speed: (0~60) m/min, adjustable.
4. Technical Parameters of Thin Sheet Cut to Length Line:
| Strip thickness | Strip | Max coil’s weight | Shearing speed |
| 0.2-1.5mm | 900-2000mm | 30T | 0~100m/min |
| 0.5-3mm | 900-2000mm | 30T | 0~100m/min |
5. Main features:
1. We can make and design all kinds of special machine according to customer's requests.
2. This is a very perfect and durable equipment. We have more than 10 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
