Product Details:
|
| Description: | High Frequency Welded Pipe Mill | Applicable Material: | Hot Rolling Or Cold Rolling Steel |
|---|---|---|---|
| Round Pipe Size: | Φ48mm~Φ114mm * 4.0mm~5.0mm | Square Pipe Size: | 80×80mm* 4.0mm~5.0mm |
| Rectangle Pipe Size: | 50×100mm * 4.0mm~5.0mm | Producing Length: | Designed By Customer Request |
| Cutting Length Precision: | ±3mm | Producing Speed: | 30~60m/min |
| High Light: | 48mm hf tube mill,wall thickness 4.0mm hf tube mill,114mm high frequency tube mill |
||
1. Product Description:

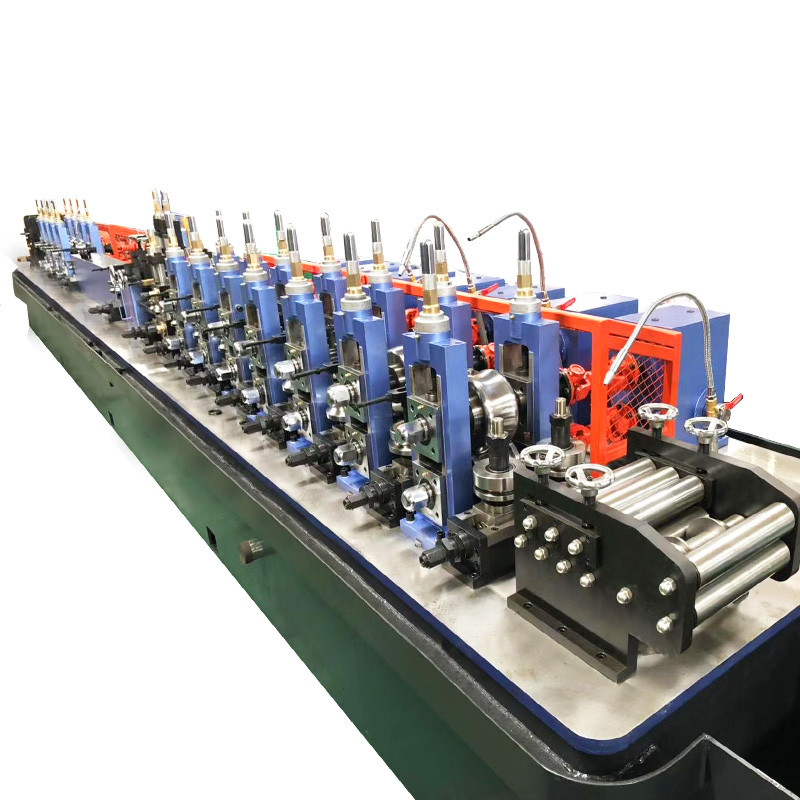

High Frequency Welded Tube Mill structural pipe and industrial pipe with Φ48mm~Φ114mm and wall thickness of 4.0~5.0mm
2. Work process:
Uncoiling→ Leveling & Straightening→ Accumulating→ Leveling→ Forming→ HF welding→ Deburring (outer) → Cooling→ Sizing→ Straightening→ Cutting→ Discharging
3. Parts of Line:
6. Technical Parameters:
| Model No. | MA114 | MA125 | MA165 | MA219 |
| Outer diameter | Φ40~114 MM | Φ50~130 MM | Φ76~165 MM | Φ89~219 MM |
| Wall thickness | 1.2~4.0 mm | 2.0~5.0 mm | 2.0~6.0 mm | 3.0~6.0 mm |
| Production speed | 0~70 m/min. | 0~60 m/min. | 0~50 m/min. | 0~50 m/min. |
| Driving motor power | 132 Kw*2 sets | 160 +200 Kw | 200 Kw*2 sets | 200 Kw*3 sets |
| HF welder power | 300 KW | 400 KW | 500 KW | 500 KW |
7. Photos for reference:
8. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
9. Warranty term: 12 months (excluding easy-broken parts)
10. Our service and features:
8.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
