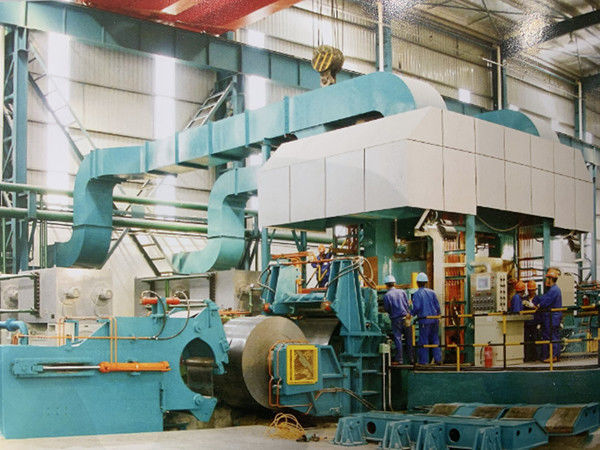

0.02mm 6 High Reversible Cold Rolling Mill Equipment

1. Description of goods:

HC Six-Hi Reversing cold rolling mill line MA Φ150/Φ175/Φ500×500 with electric auto control system.

2. Introduction:
Due to different numbers of rollers, the metal coil cold rolling mill is divided into 2 Hi, 4 Hi, 6 Hi, and 12 Hi AGC.
The six-high cold rolling mill is more suitable for carbon steel, stainless steel and special steel coil rolling; even the steel with large width and small finished thickness is available too.


3. Characteristics:
1. This kind of cold rolling mill is controlled by PLC.
2. It has HIM touch screen on main control console which is equipped with malfunction alarm setting.
3. This equipment adopts all digital DC power.
4. The work rollers have the plus-minus roller-bending control.
5. These middle rollers, middle rollers and backup rollers change fast.
6. The reversible rolling on this cold rolling mill has the feature of high precison.
Work flow:
Decoiler with coil loading car → Coil end straightener → Left recoiler with coil discharging car → Work platform before rolling mill → 6-hi cold rolling mill → Work platform after rolling mill → Right recoiler with coil discharging car
Because of the different input thickness, input width and finished thickness, six-high cold rolling mill can be divided into 2 kinds.
Parameters:
Thickness tolerance: ±0.02mm
Running speed: 4m/s
Total installation power: about 2200KW
Occupation: about 15mX60m


4. Technical Parameters:
