Product Details:
|
| Production Description: | 450mm Four-High Reversing Cold Rolling Mill For Precision Strips For Q235, SL400, SS400, SPHC | Raw Material: | Stainless Steel Q235, SL400, SS400, SPHC, Etc. |
|---|---|---|---|
| Input Thickness: | ≤4.0mm | Input Width: | 60-350mm |
| Output Thickness: | ≥1.0mm | Max. Coil Weight: | 4T , As Required |
| High Light: | 450mm Reversing Cold Rolling Mill,SS400 SPHC Reversing Cold Rolling Mill,Reversing Precision Strips Cold Rolling Mill |
||
1. Product description

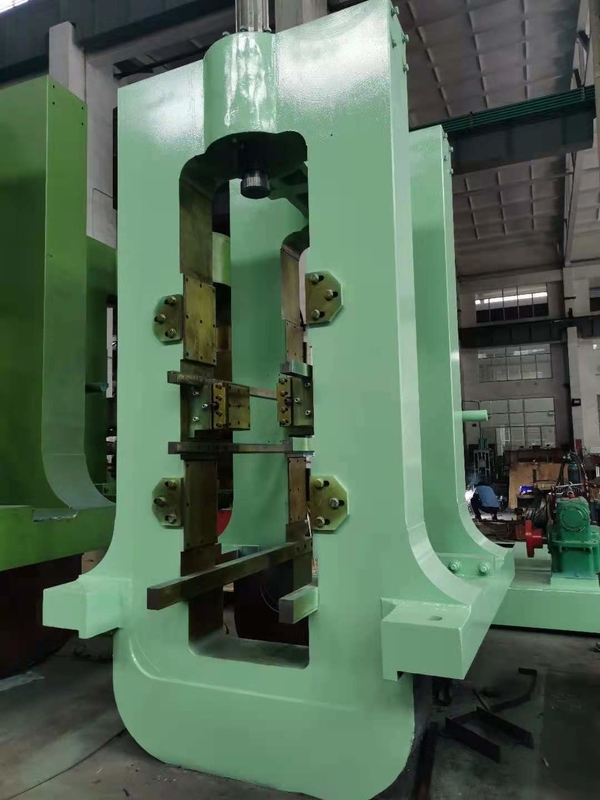

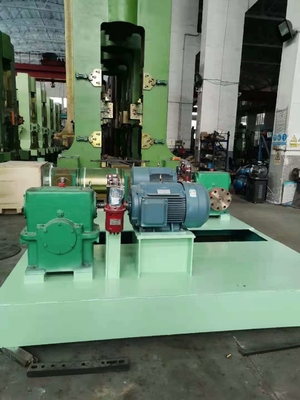

450mm Four-High Reversing Cold Rolling Mill for Precision Strips for Q235, SL400, SS400, SPHC
2. Reference Process flow:
Decoiler with coil loading car → Coil end straightener → Left recoiler with coil discharging car → Work platform before rolling mill → 6-hi cold rolling mill → Work platform after rolling mill → Right recoiler with coil discharging car
3. Equipment Composition:
1,Material: hot rolled carbon steel after trimming (Q235, SL400, SS400, SPHC, etc.)
2,Thickness: H≤4.0mm Width: B≤60-350mm
3,Thickness: H≥1.0mm Width: B≤60-350mm
4,Max. coil weight: 4t
5,Incoming coil diameter (inner/outer): 508/1600mm
6,Output coil diameter (inner/outer): 508/1600mm
7,Max. rolling pressure: 300T
8,Rolling speed: V≤120m/min
9,Rolling line elevation: 850mm
10,Rolling mode: reversing roll forming
Note: The above parameters are for reference only, it could be manufactured according to customer's requirements.
4.SGS Inspect photos
5. Warranty term: 12 months (excluding easy-broken parts)
