Product Details:
|
| Material Of Coils: | Steel Coil Slitting And Cutting To Length Machine | Strip Thickness: | 0.3~3mm |
|---|---|---|---|
| Strip Width: | 300~1600mm | Max.coil Weight:: | 15000kg |
| Voltage:: | 380V 50Hz 3phases | Quality Guarantee: | One Year |
| High Light: | 3x1600mm Sheet Cut To Length Line,0.3-3mm Sheet Cut To Length Line,CR galvanized steel CTL machine |
||
1. Description of goods:

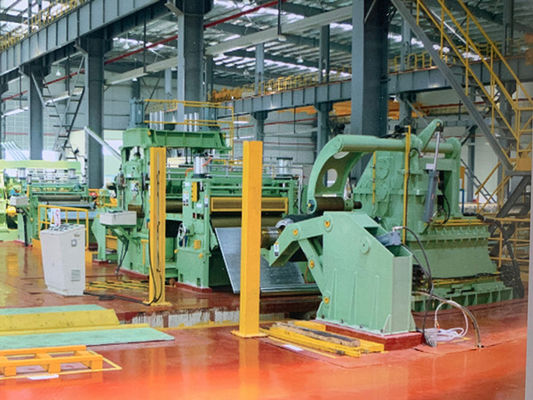

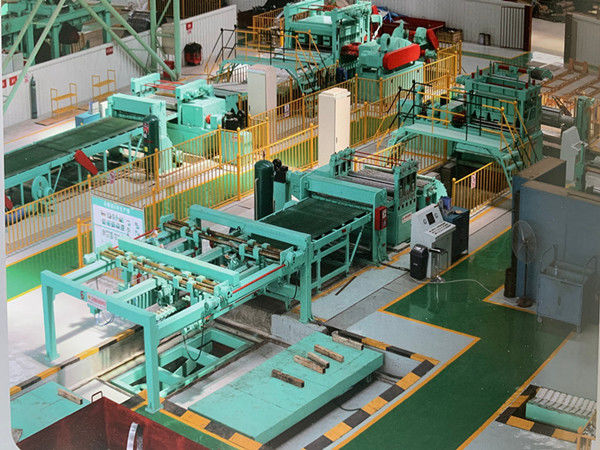

Automatic rotary shear stacking line Middle & heavy thickness Cut to Length Line with stably speed ,the edge no burr
2. Introduction:
Middle thick plate cut-to-length line can meet customer’s request of max line speed 40m/min by uncoiling & leveling a coil strip, and then shearing the leveled flat strip to certain length of sheets.
This coil CTL line is especially suitable for CR, HR carbon steel coils, GI, PPGI steel plates.
The plate cut-to-length line (coil CTL line) has one leveling machine driven by DC or AC motor, and the length-fixing is by encoder, shearing style is stop-shear.
The middle thick plate cut-to-length line fit steel coils with thickness: (1~6mm, 2~8mm, 3-10mm) and changeable width, and length of finished sheets depend on customer’s practical need.
3. Advantages & Characteristics for this coil CTL line:
1. High precision
Line speed can be up to 30m/min, 7-8pcs/min 2000mm Length sheets in average.
Leveling precision: ±1mm/㎡
Sheet length precision: ±0.5mm/m
Sheet diagonal length precision: ±0.5mm/m
4. Main technical parameter :
Material of coils: HRC, CRC, GI, PPGI, Q195, Q235, Q345...
Strip thickness: (0.3-3) mm
Max. Strip width: 1600mm
coil ID: ≥Φ508mm
Coil OD: Φ1800mm
Max. Coil weight: 20000Kgs
Slitter motor: 75KW DC motor
Slitter shaft: Ф220 x 1650mm
Disc knives on slitter shaft: ID220mm x OD330mm x 10mm, 6CrW2Si.
Separating disc: ID85 x OD210mm x 6mm, 65Mn
Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.
Recoiler block: Ф508 x 1700mm
Recoiler motor: 90KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels.
Slitting speed: max 100m/min, adjustable.
5. Detail specification of coil CTL line:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-1 x 600 | 0.2-1mm | 100-600mm | Max 8T | Min. 20mm | 50m/min |
| MA-2 x 1300 | 0.3-2mm | 300-1300mm | Max 15T | Min. 25mm | 80m/min |
| MA-3 x 1600 | 0.3-3mm | 500-1600mm | Max 20T | Min 25mm | 100m/min |
| MA-4 x 1600 | 0.4-4mm | 500-1600mm | Max 30T | Min 30mm | 80m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | |||||
