Product Details:
|
| Material Of Coils: | HR Steel Coil Cut To Length Line | Strip Thickness: | 0.3~3mm |
|---|---|---|---|
| Strip Width: | 300~1600mm | Max.coil Weight:: | 15000kg |
| Voltage:: | 380V 50Hz 3phases | Slitting Speed: | Max 100m/min, Adjustable |
| Leveling Precision: | ±1mm/㎡ | Slitter Shaft: | Ф220 X 1650mm |
| High Light: | 1600mm Sheet Cut To Length Line,Servo Sheet Cut To Length Line,100m/Min Slitting Cut To Length Line |
||

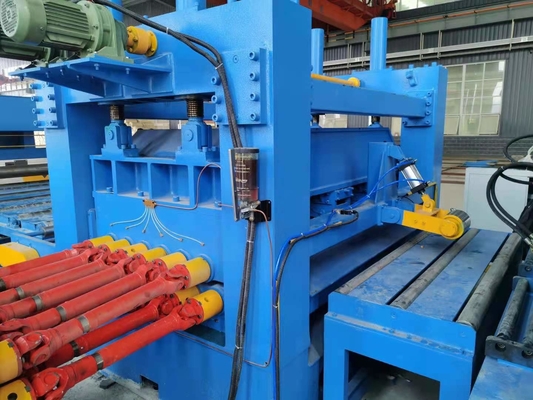

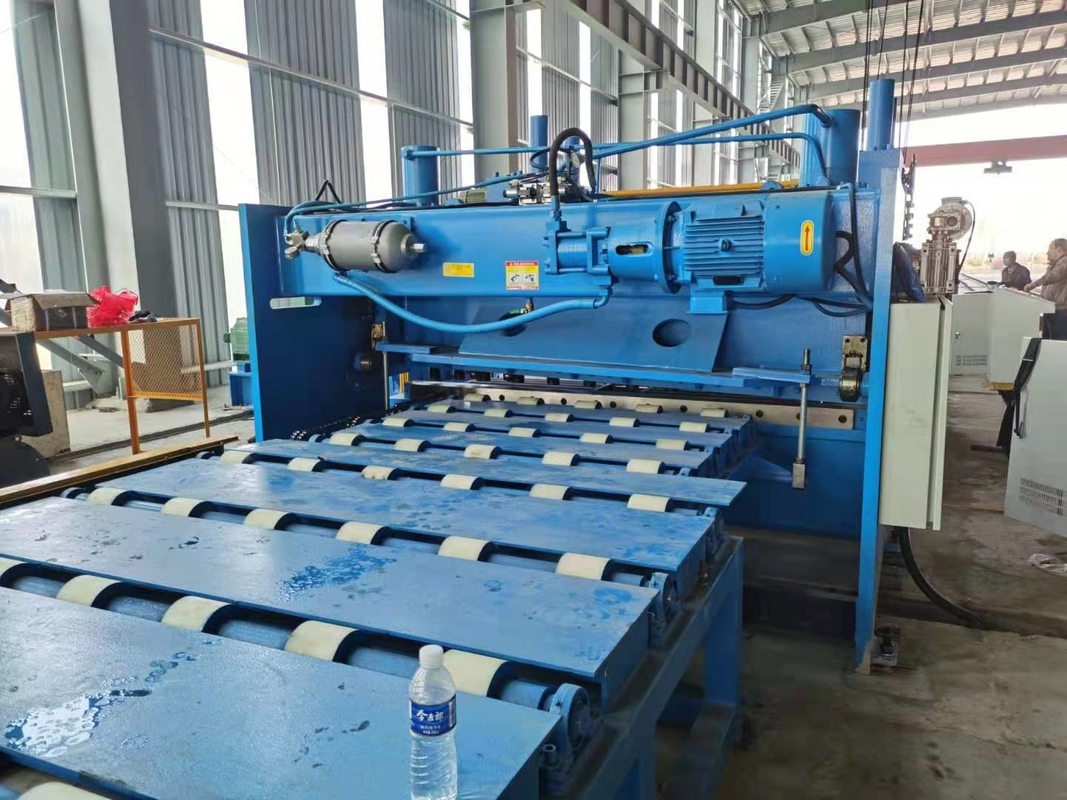

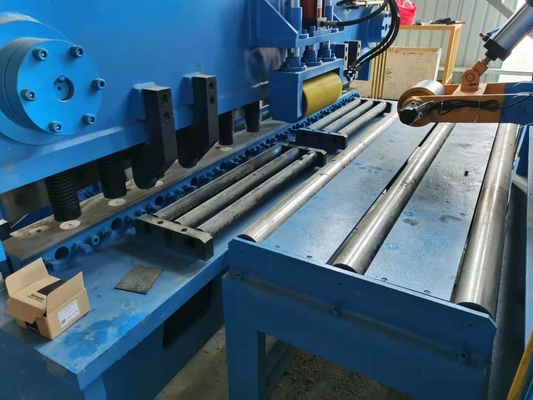

300~1600mm High Precision Automatic Cut To Length Machine Servo Drive
1. Description of goods:
Automatic rotary shear stacking line Middle & heavy thickness Cut to Length Line with stably speed and servo drive
2. Introduction:
Middle thick plate cut-to-length line can meet customer’s request of max line speed 40m/min by uncoiling & leveling a coil strip, and then shearing the leveled flat strip to certain length of sheets.
This coil CTL line is especially suitable for CR, HR carbon steel coils, GI, PPGI steel plates.
The plate cut-to-length line (coil CTL line) has one leveling machine driven by DC or AC motor, and the length-fixing is by encoder, shearing style is stop-shear.
The middle thick plate cut-to-length line fit steel coils with thickness: (1~6mm, 2~8mm, 3-10mm) and changeable width, and length of finished sheets depend on customer’s practical need.
3. Advantages & Characteristics for this coil CTL line:
1. High precision
Line speed can be up to 30m/min, 7-8pcs/min 2000mm Length sheets in average.
Leveling precision: ±1mm/㎡
Sheet length precision: ±0.5mm/m
Sheet diagonal length precision: ±0.5mm/m
4. Main technical parameter:
MA-(0.3~3)×1600mm/2000mm/2500mm plate Cut to Length Line
Material of coils: HRC, CRC, GI, PPGI, Q195, Q235, Q345...
Strip thickness: (0.3-3) mm
Max. Strip width: 1600mm
coil ID: ≥Φ508mm
Coil OD: Φ1800mm
Max. Coil weight: 20000Kgs
Slitter motor: 75KW DC motor
Slitter shaft: Ф220 x 1650mm
Disc knives on slitter shaft: ID220mm x OD330mm x 10mm, 6CrW2Si.
Separating disc: ID85 x OD210mm x 6mm, 65Mn
Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.
Recoiler block: Ф508 x 1700mm
Recoiler motor: 90KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels.
Slitting speed: max 100m/min, adjustable.
5. Detail specification of coil CTL line:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-1 x 600 | 0.2-1mm | 100-600mm | Max 8T | Min. 20mm | 50m/min |
| MA-2 x 1300 | 0.3-2mm | 300-1300mm | Max 15T | Min. 25mm | 80m/min |
| MA-3 x 1600 | 0.3-3mm | 500-1600mm | Max 20T | Min 25mm | 100m/min |
| MA-4 x 1600 | 0.4-4mm | 500-1600mm | Max 30T | Min 30mm | 80m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | |||||
6. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
7. Warranty term: 12 months (excluding easy-broken parts)
8. Our service and features:
8.1 Design: MAZS have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
