Product Details:
|
| Description: | Rolling Mill Machine | Material: | Carbon Steel |
|---|---|---|---|
| Input Thickness (mm): | 1.5mm | Finished Thickness (mm): | 0.1 |
| Thickness Tolerance: | ≤0.01mm | Width: | Max. 600mm |
| Highlight: | 600mm 12 hi cold rolling mill,AGC 12 Hi Cold Rolling Mill,12hi cold steel rolling mill |
||
1. Description:

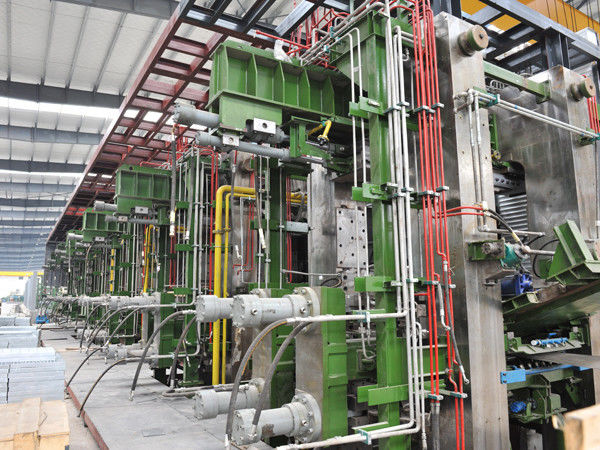

MA 12-Hi AGC Cold Rolling Mill carbon steel hydraulic heavy duty reduction gear manual screwdown system
2. Introduction:
The 12-Hi AGC cold rolling mill, one of metal coil cold rolling mill, is made from good quality raw material. At the same time, we are upgrading with the latest technological equipments when producing this cold rolling mill. Due to different numbers of rollers, the metal coil cold rolling mill is divided into2 Hi, 4 Hi, 6 Hi, and12 Hi AGC.
3. Features:
4. Technical Parameters:
| Type | Φ120 × 160 | Φ150 × 220 | Φ175 × 400 | Φ250 × 500 | Φ320 × 600 | Φ400 × 800 | Φ500 × 1000 |
| Input thickness (mm) | ≤4 | ≤4 | ≤4 | ≤8 | ≤10 | ≤20 | ≤30 |
| Output thickness (mm) | 0.15 | ≥0.35 | ≥0.35 | ≥0.4 | ≥0.4 | ≥0.5 | ≥0.6 |
| Strip (mm) | 10-100 | ≤150 | 300 | 370 | 450 | ≤600 | 800 |
| Rolling pressure (T) | 65 | 100 | 100 | 120 | 150 | 160 | 260 |
| Rolling speed (m/min) | 12 | 13 | 13 | 13 | 13-15 | 13-15 | 15-25 |
| Main motor (KW) | 22 | 30 | 37 | 55 | 75 | 155 | 160 |
| Press-down motor (KW) | 1.5 | 2.2 | 2.2 | 3 | 4 | 4 | 7.5 |
| Press-down speed (mm/s) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.12 | 0.12 |
| Speed reducer | JZQ550 | JZQ750 | JZQ750 | JZQ750 | JZQ1000 | JZQ115 | JZQ130 |
| Weight (T) | 4.8 | 5.8 | 7 | 12.8 | 19 | 40 | 50 |
Note: The above parameters are for reference only, it could be manufactured according to customer's requirements.
5. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
