Product Details:
|
| Description: | Rolling Mill Machine | Steel Grade: | Q195、Q215、Q235 |
|---|---|---|---|
| Material Width: | 680mm | Input Thickness: | 4.0mm |
| Output Thickness: | 1.6mm-2.0mm | Max. Coil Weight: | 10t |
| Max. Rolling Capacity: | 6500KN | Coiling Tension: | Max 60 KN |
| Maximum Design Speed: | 150m/min | ||
| High Light: | tandem process steel cold rolling mill,thickness 1.6mm steel cold rolling mill,thickness 2.0mm tandem mill cold rolling |
||
1. Description:

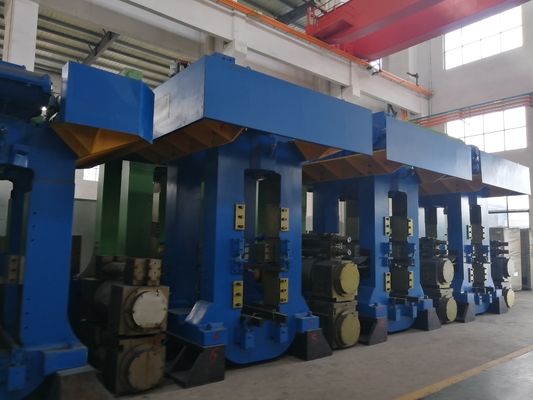

800mm Four-high two-stand tandem cold rolling mill

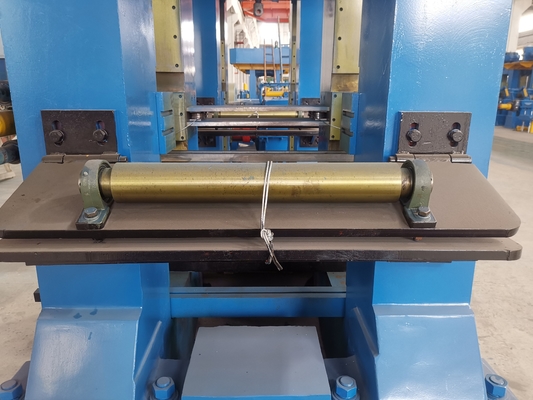

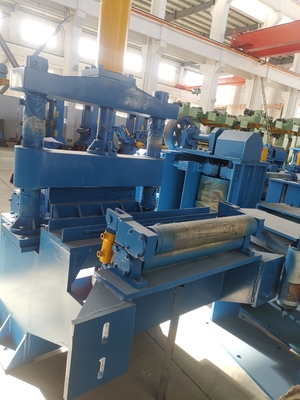

The machine is composed of decoiler, main frame, front and rear guide device, transmission base, hydraulic system, electronic control system and other parts. It is made from good quality raw material. At the same time, we are upgrading the equipment with the latest technology to produce the best cold rolling mill.
2. Main function:
The series of units are suitable for the intermediate and finishing rolling of plain carbon steel, alloy steel, copper, aluminum and stainless steel sheet and strip, and the finished products, with high rolling precision, fast speed, stable tension and many other advantages.
3. Work process:
Loading→ decoiling → shearing → welding (welding machine provied by the user) → floor-type storage looper → vertical roller guide →F1 four-high mill (thickness measurement and tension measurement) →F2 four-high mill (tension measurement and speed measurement) → exit platform (de-oiling and thickness measurement) → shearing → coiling machine → unloading.
4. Technical Parameters:
| Type | 450mm | 500mm | 650mm | 750mm | 800mm | |||||
| Rolling force | 3000KN | 5000KN | 6000KN | 7500KN | 8500KN | |||||
|
Frame section |
250×350 | 300×380 | 320×420 | 350×450 | 420×520 | |||||
|
Press-down system |
315center S160×6 |
360center S180×8 |
480center S200×10 |
500center S220×10 |
560center S240×10 |
|||||
| Main reducer | ZLY400 | ZLY450 | ZLY560 ZLY500 |
ZLY560 | ZLY630 | |||||
|
Press-down Mode |
Electric Press-down |
Hydraulic Press-down |
Electric Press-down |
Hydraulic Press-down |
Electric Press-down |
Hydraulic Press-down | Electric press-down | Hydraulic Press-down | Electric press-down | Hydraulic Press-down |
Note: The above parameters are for reference only, it could be manufactured according to customer's requirements.
5. Packaging
Machine will be fixed inside container by steel wire and special PET film, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: We have a mature technical team with rich experience to develop and design the machines according to customer's demands and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experience.
7.3 This kind of machine has the best quality and the best price. It measures accurately and is easy to operate.
7.4 We provide technical support (both pre-sale and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our products have been exported to many regions and won high reputation because of the high quality and reasonable price.
