Product Details:
|
| Product Name: | Cold Rolling Machine | Raw Material: | Carbon Steel Coil |
|---|---|---|---|
| Input Thickness: | H≤2.0-0.6mm | Width: | B≤400mm |
| Output Thickness: | H≥0.7-0.2mm | Max. Coil Weight: | 8T, As Required |
| Incoming Coil Diameter (inner/outer): | 508/1600mm, As Required | Output Coil Diameter (inner/outer): | 508/1600mm, As Required |
| Max. Rolling Force: | 2800 KN | Rolling Speed: | V≤200m/min |
| Rolling Line Elevation: | 900mm | Warranty: | One Year |
| High Light: | coil 4 high cold rolling mill,350mm Steel Cold Rolling Mill,4hi Steel Cold Rolling Mill |
||
1. Product name:

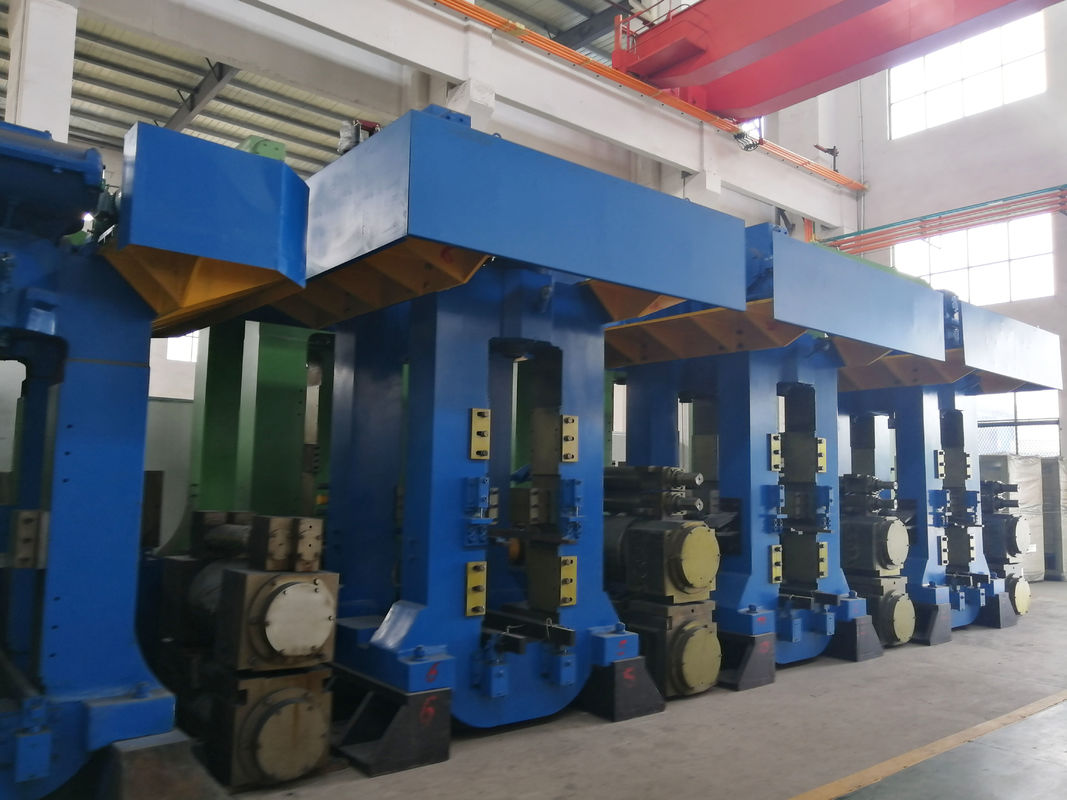

MA 350mm 4-Hi Cold Rolling Mill Carbon steel, Stainless Steel and Special Steel Coil
2. Introduction:
MA 350mm 4-Hi Cold Rolling Mill is suitable for medium and finish rolling and finished products of plain carbon steel, alloy steel, copper, aluminum and stainless steel plate and strip.
3. Process flow (for reference):
Loading (unloading) device →Recoiler →Rolling mill process platform→Four-high main rolling mill →Rolling mill process platform →Recoiler →Unloading (loading) device
4. Technical Parameters (for reference):
|
Model No. Technical Parameters |
350 Rolling Mill | 450 Rolling Mill | 500 Rolling Mill | 650 Rolling Mill | 750 Rolling Mill | 850 Rolling Mill |
| Rolling Force | 2800 KN | 3000 KN | 5000 KN | 6000 KN | 7500 KN | 8500 KN |
| Frame Section | 190*280 | 250*350 | 300*380 | 320*450 | 350*450 | 420*520 |
| Screwdown System |
270 Center S140*6 |
315 Center S160*6 |
360 Center S180*8 |
480 Center S200*10 |
500 Center S220*10 |
560 Center S240*10 |
| Main Reducer | ZLY 355 | ZLY 400 | ZLY 450 | ZLY 560 | ZLY 560 | ZLY 630 |
| Mode of Screwdow | Electrical | Electrical/Hydraulic | Electrical/Hydraulic | Electrical/Hydraulic | Electrical/Hydraulic | Electrical/Hydraulic |
Note: the above parameters are for reference, it could be made as per customer's requirements.
5. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
