Product Details:
|
| Description: | High Speed Pipe Mill Pipe Welding Machine | Raw Material: | Pre-slit Carbon Steel CR, HR Coils |
|---|---|---|---|
| Outer Diameter: | Φ50~130MM | Wall Thickness: | 2.0~5.0 Mm |
| Length Accuracy: | ± 3mm | Driving Motor Power: | 160+200 KW |
| HF Welder Power: | 400 KW | Production Speed: | Max 60 M/min |
| High Light: | 60m/min high frequency pipe welding machine,2.0-5.0mm high frequency pipe welding machine,400kW high speed tube mill |
||
1. Product Description:
High speed pipe mill pipe welding machine welded tube mill pre-slit carbon steel CR, HR coils
2. Introduction:
Through optimizing design, this pipe mill can produce in high speed. For example, round pipe smaller than Φ63*2.5mm can reach speed 140m/min.
3. Work process:
Uncoiling→ Accumulating→ Leveling→ Forming→ HF welding→ Deburring (outer) → Cooling→ Sizing→ Straightening→ Cutting→ Discharging
4. Configuration:
| Description | Optional |
| Decoiler | Double/Single-head/Manual/Pneumatic/Hydraulic |
| Shear &butt welding | Manual/Pneumatic welding |
| Accumulator | Vertical/Horizontal accumulator |
| Forming & sizing unit | DC motor/AC motor |
| Solid HF welder | Traditional solid/Integrated welder |
| Computer flying saw | Hot saw/Cold saw |
| Run-out table | Passively/Pneumatic turnover |
5. Technical Parameters:
| Model No. | MA114 | MA125 | MA165 | MA219 |
| Outer diameter | Φ40~114 MM | Φ50~130 MM | Φ76~165 MM | Φ89~219 MM |
| Wall thickness | 1.2~4.0 mm | 2.0~5.0 mm | 2.0~6.0 mm | 3.0~6.0 mm |
| Production speed | 0~70 m/min. | 0~60 m/min. | 0~50 m/min. | 0~50 m/min. |
| Driving motor power | 132 Kw*2 sets | 160 +200 Kw | 200 Kw*2 sets | 200 Kw*3 sets |
| HF welder power | 300 KW | 400 KW | 500 KW | 500 KW |

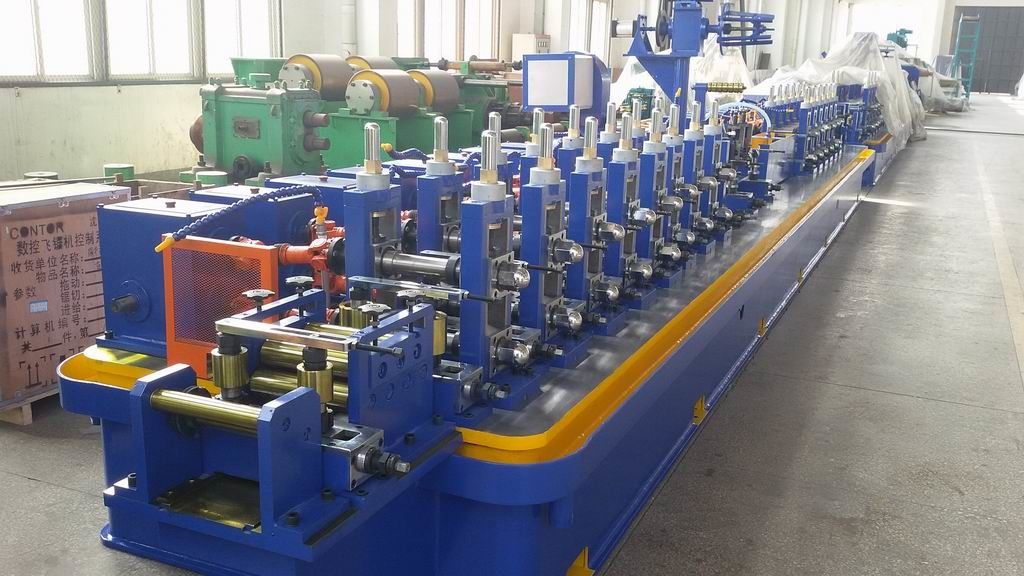

6. Photos for reference:
7. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
8. Warranty term: 12 months (excluding easy-broken parts)
9. Our service and features:
9.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
9.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
9.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
9.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
9.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
