Product Details:
|
| Description: | Normal Speed Cut-To-Length Line | Material Of Coils: | CR Galvanized Steel Plate, Carbon Steel And Etc. |
|---|---|---|---|
| Strip Thickness: | 0.2-2.0mm | Strip Width: | 400-1000mm |
| Max.coil Weight:: | 15000kg | Line Speed: | Max. 40m/min. |
| Leveling Precision: | ±1mm/㎡ | Voltage:: | 380V 50Hz 3phases |
| Quality Guarantee: | One Year | ||
| High Light: | Normal Speed CTL line,40m/min Cut To Length Machine Sheet Metal,0.2-2.0mm cut to length machine sheet metal |
||
1. Product description:
Normal Speed Cut-To-Length Line
2. Introduction:
2.1 Normal-speed cut-to-length line (sheet CTL line) can meet customer's request of max line speed 40m/min by uncoiling & leveling a coil strip, and then shearing the leveled flat strip to certain length of sheets.
2.2 The sheet cut-to-length line has one leveling machine driven by DC or AC motor, and the length-fixing is by encoder.
2.3 The Normal speed sheet cut-to-length line (sheet CTL line) fit steel coils with thickness: (0.2-2mm, 0.3-3mm, 0.6-4mm) and changeable width and length of finished sheets depend on customer's practical need.
3. Advantages and Characteristics of Normal Speed Cut-To-Length Line:
3.1 Fast speed and high precision
3.2 Thin coils differ in coil weight, when max coil weight is small, usually single mandrel (cantilever) uncoiler for this sheet cut-to-length line (sheet CTL line) is adopted.
3.3 To make flat steel sheets, the diameter of leveling rollers should be scientifically proper, we confirm diameter of leveling rollers by actual experiences and engineering calculation.
3.4 Automatically piling-up bracket can receive finished sheets and automatically pile them up orderly.
3.5 Hole accumulator between decoiling and leveling, is necessary to protect sheet surface and make sure the simultaneously work of decoiling and leveling.
4. Technical specifications:
| Detail specification: Model | Thickness | Length | Leveling speed | |
| MA-2 x 1000 | 0.2-2.0mm | 400-1000mm | adjustable | Max 100m/min |
| MA-3 x 1250 | 0.3-3.0mm | 500-1250mm | adjustable | Max 100m/min |
| MA-4 X 1500 | 0.6-4mm | 500-1500mm | adjustable | Max 80m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each sheet cut-to-length line (sheet CTL line) according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | ||||

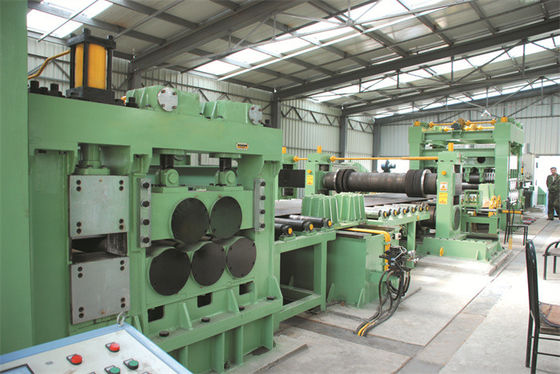

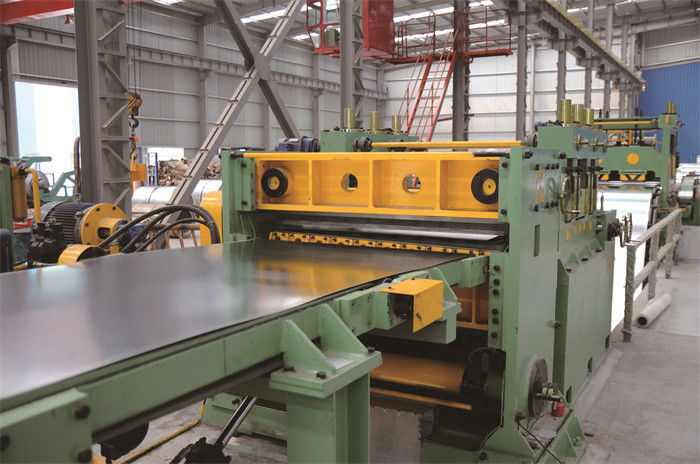

5. Photo for reference:
6. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
7. Warranty term: 12 months (excluding easy-broken parts)
8. Our service and features:
8.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
