Product Details:
|
| Description: | High-Speed Cut-To-Length Line | Line Speed: | Max. 100m/min. |
|---|---|---|---|
| Leveling Precision: | ±1mm/㎡ | Sheet Length Precision: | ±0.5mm/m |
| Sheet Diagonal Length Precision: | ±0.5mm/m | Material Of Coils: | CR Galvanized Steel Plate, Carbon Steel And Etc. |
| Strip Thickness: | 0.3~3mm | Strip Width: | 300~1600mm |
| Max.coil Weight:: | 15000kg | Voltage:: | 380V 50Hz 3phases |
| Quality Guarantee: | One Year | ||
| High Light: | 100m/min high speed cut to length line,0.5mm/m high speed cut to length line,30pcs/min metal cut to length machine |
||
1. Production description:
Servo Motor 100m/min High Speed Cut To Length Line
2. Introduction:
This high-speed cut-to-length line is able to uncoil & level a coil strip, and then shear the leveled flat strip to certain length of sheets at line speed of max 100m/min. It is referred as coil strip CTL machine in general place. This CTL machine is suitable for thin sheet or thin coil cut-to-length.
The high speed cut-to-length line adopts servo length-fixing and pneumatically mechanical shearing to make sure sheet length precision and clean shearing notch.
The high speed CTL line (coil strip CTL machine) fit steel coils with thickness: (0.2-2mm, 0.3-3mm, 0.6-4mm, or 1-5mm) and changeable width and length of finished sheets depend on customer's practical need.
3. Advantages and Characteristics of High-Speed Cut-To-Length Line:
Fast speed and high precision
4. Technical Specifications of High-Speed Cut-To-Length Line:
| Detail specification: Model | Thickness | Length | Leveling speed | |
| MA-2 x 1000 | 0.2-2.0mm | 400-1000mm | adjustable | Max 100m/min |
| MA-3 x 1250 | 0.3-3.0mm | 500-1250mm | adjustable | Max 100m/min |
| MA-4 X 1500 | 0.6-4mm | 500-1500mm | adjustable | Max 80m/min |
| MA-5x1600 | 1-5mm | 500-1600mm | adjustable | Max 80m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us. | ||||

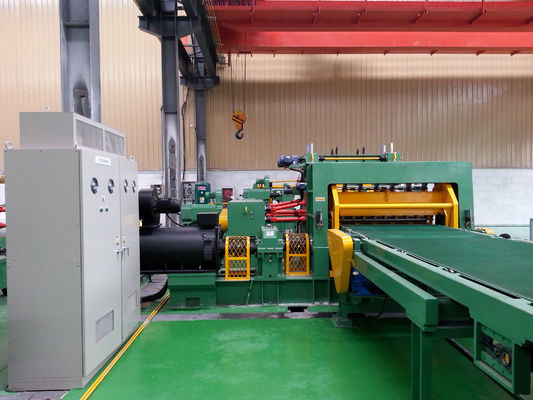

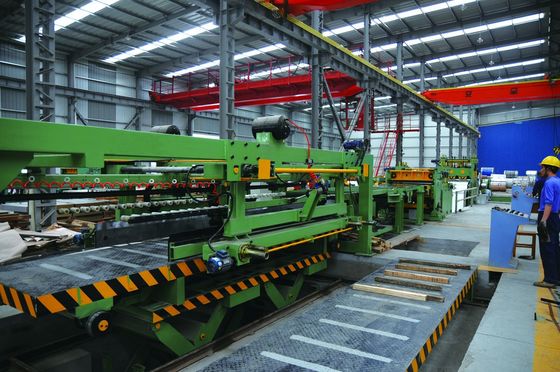

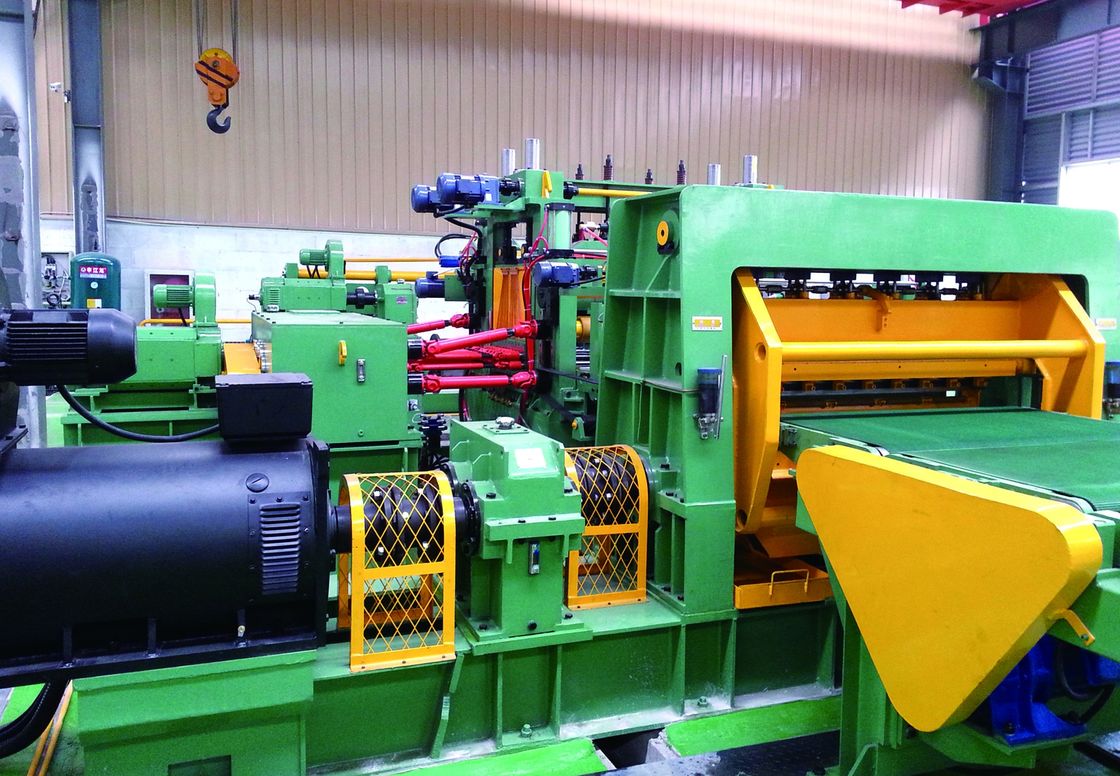

5. Photo for reference:
6. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
7. Warranty term: 12 months (excluding easy-broken parts)
8. Our service and features:
8.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
