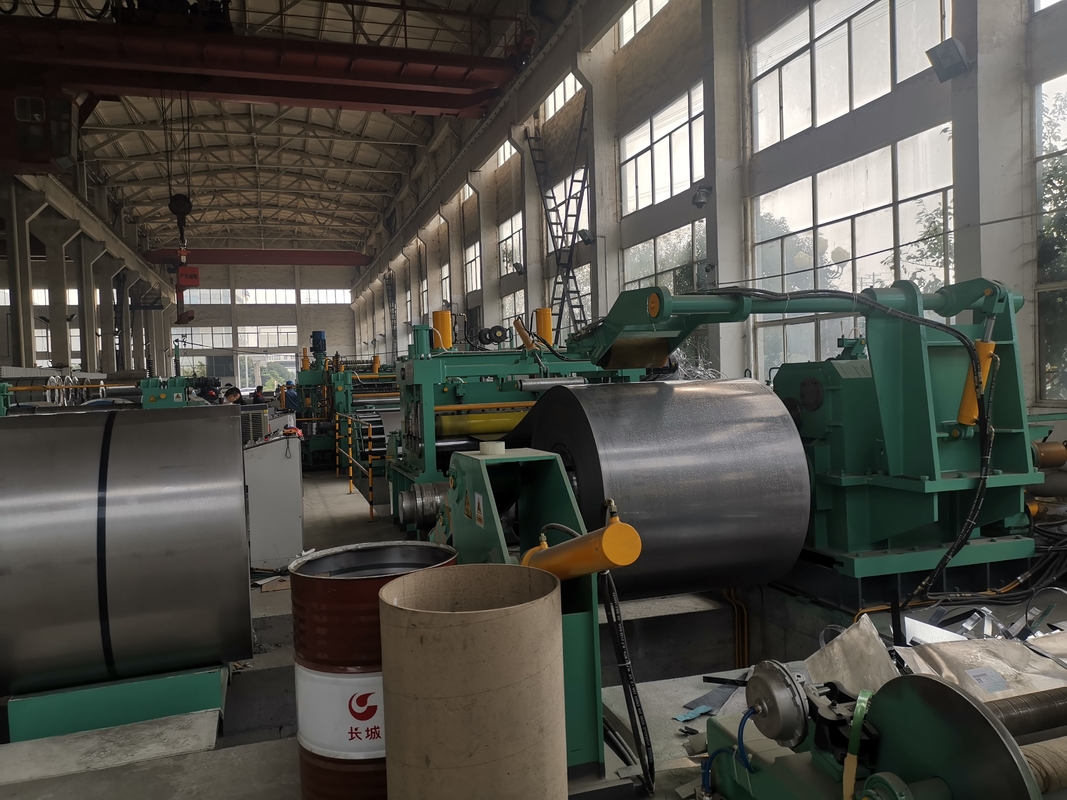

HR steel sheet coil slitting production line

1. Product name:

HR steel sheet coil slitting production line MA-(2~8)×1800mm

Capacity of middle thick steel coil slitting line is mainly used to slit steel coils of thickness 0.6~5 mm, 1~6 mm, 2-8mm or 3~10mm. And for steel coils with width: 600~1600 mm, 800~1800mm or 800~2000mm into narrower baby coils. This steel slitter is widely used for proving steel strip coils for cold rolling mill, welded pipe mill, roll forming machine, etc.

2. Introduction:

MA-(2~8)×1800mm Steel Coil Slitting Line
Input coils: carbon steel, color steel, galvanized steel and etc
Strip thickness: (2~8) mm
Strip width: 600~1800 mm
Inner diameter of coils: ≥Φ508mm
Max.outer diameter of coils: Φ2100mm
Steel Slitting Machine Max.coil weight: 35000kgs
Steel Slitter shaft: Φ280 x 1850mm
Slitting motor: 132KW DC motor
Material of disc cutter: 6CrW2Si, HRC56°~58°
Recoiling spindle: Φ508×1900mm
Steel Slitting Machine Recoiling motor: 160KW DC motor.
Slitting speed: (0~80) m/min, adjustable

3. Our service:
Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.

During Production we can send pictures to show you the exact schedule of your machine. For the after-sale service, we provide one year guarantee for the machine. The parts of roll forming machine are free to send you and you only need to pay the cost of freight. Any questions, you can contact us by email or whatsapp.

4. Packaging:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.

5. Warranty term: 12 months (excluding easy-broken parts)

6. Our service and features:
6.1 Design: MAZS have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
6.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
6.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
6.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
6.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
