Product Details:
|
| Product: | Steel Coil Slitting | Material: | Cold-rolled Galvanized Coil |
|---|---|---|---|
| Strip Thickness: | 0.2-0.8mm | Max. Strip Width: | 300-1250mm |
| Inner Diameter Of Steel Coil: | Φ508mm | Outer Diameter Of Steel Coil: | Max. Φ1800mm |
| Linear Speed: | 0-70M/Min | Weight Of Steel Coil: | Max. 10T |
| High Light: | Hydraulic Steel Coil Slitting Machine,1250mm Steel Coil Slitting Machine,0.2-0.8mm metal coil slitter |
||
1. Product description:
Hydraulic Steel Coil Slitting Machine , 0.2-0.8mm Metal Coil Slitter
MA 0.2-0.8X1250 Hydraulic Slitting Line is used for uncoiling, slitting and recoiling the steel plate to prepare for the next process.
2. Specifications:
| NO. | Name | Parameters |
| 1 | Control model | Frequency conversion control |
| 2 | Materials | cold/hot-rolled steel, galvanized plate, colored plate |
| 3 | Thickness | 0.2-0.8 mm |
| 4 | Width | 174-1250 mm |
| 5 | Coil I.D. | 508 mm |
| 6 | Coil O.D. | ≤1400 mm |
| 7 | Weight | 10 T |
| 8 | Slitting blade shaft | Φ160 mm |
| 9 | Blade specification | Φ300×Φ160×15 mm |
| 10 | Material of blade | 6CrW2Si |
| 11 | Recoiling inner diameter | φ480-φ520mm |
| 12 | Recoiling max weight | ≤10000kg |
| 13 | Line speed | ≤40 m/min |
| 14 | Production capacity | 1000 T/Month |
| 15 | Power of decoiler | 7.5 KW |
| 16 | Power of slitter | 15 KW |
| 17 | Power of recoiler | 30 KW |
| 18 | Width tolerance | ≤±0.05 mm |
| 19 | No. of slitting | 10pcs |
| 20 | The direction of whole line | from right to left, the operate table faces the machines |
| 21 | Power | 380V/3Ph/50Hz |
| 22 | Operation people | 1 technician and 1 general worker |
| 23. | Color | Customized |
3. Configurations:
| No. | Name | Quantity |
| 1 | Hydraulic entry coil car(On- ground ) | 1set |
| 2 | Hydraulic de-coiler | 1 set |
| 3 | Pit 1 | 1 set |
| 4 | Slitting machine | 1 set |
| 5 | Scrap winder | 1 set |
| 6 | Pit 2 | 1 set |
| 7 | Hydraulic tension stand | 1 set |
| 8 | Recoiler | 1set |
| 9 | Hydraulic exit coil car(On- ground ) | 1set |
| 10 | Hydraulic system | 1 sets |
| 11 | Electrical control system | 1 sets |

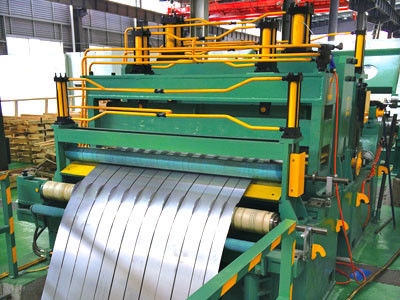

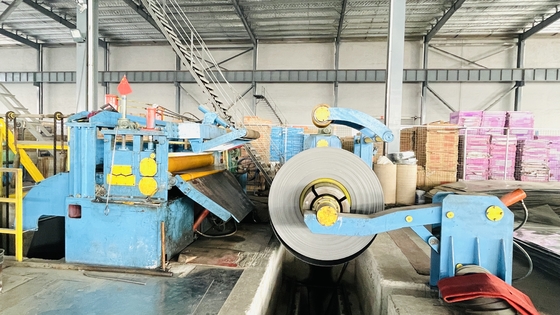

4. Machine photo for reference:
5. Packaging
Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
