Product Details:
|
| Description Of Goods: | MA-(4-16)×2200mm Sheet Slitting Line Used For Cold Rolling Material,high Speed Slitting Accuracy Less Than 0.05mm | Strip Thickness: | (4~16) Mm |
|---|---|---|---|
| Metal Coil Slitter Strip Width: | 800~2200mm | Coil Slitting Machine Max.coil Weight: | 40000kgs |
| Diameter Of Leveling Rollers & Tensioning Roller: | Φ230 | Diameter Of Slitter Shaft: | Φ360 |
| Voltage: | 380V 50Hz 3phases Or Order By The User | Quality Guarantee: | One Year |
| High Light: | 0.05mm high speed slitting machine,4-16mm Steel Sheet Slitting Machine,2200mm Steel Sheet Slitting Machine |
||
1. Descriptions of goods:

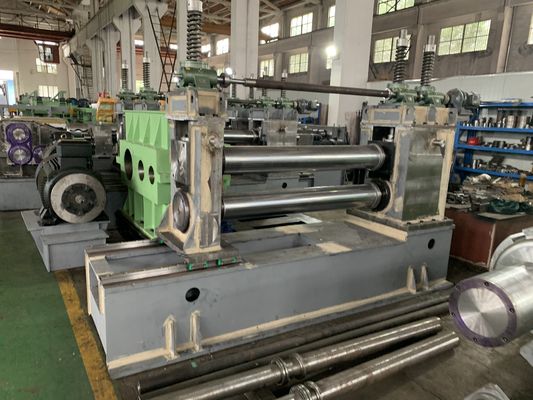

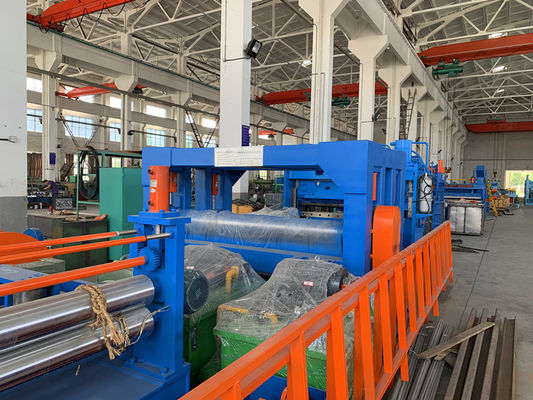

MA-(4-16)×2200mm Sheet Slitting Line used for cold rolling material,high speed slitting accuracy less than 0.05mm.
2. Technial parameter:
Material of coils: HR/CR carbon steel such as Q235, galvanized plate, colored steel plate etc.
Strip thickness: (4~16) mm.
Metal Coil Slitter Strip width: 800~2200mm.
Coil Slitting Machine Max.coil weight: 40000kgs.
Diameter of leveling rollers & tensioning roller: Φ230.
Diameter of slitter shaft: Φ360.
Metal Coil Slitter Disc cutters: 6CrW2Si, HRC54°~56°, OD600mm x ID360mm x T50mm.
Diameter of recoiler block: Φ760mm.
Coil Slitting Machine Separating discs: 65Mn, OD250 x ID110 x T10/20mm.
DC motors for slitter and recoiler: 200KW, 250KW.
Slitting speed: (0~30) m/min, adjustable.
3. Specifications of Metal Coil Slitter:
| Model | Thickness | Coil Weight | Finished slit | Max Slitting speed | |
| MA-12 x 1800 | 3-12mm | 600-1800mm | Max 35T | Min. 60mm | 30m/min |
| MA-16 x 2200 | 4-16mm | 800-2200mm | Max 40T | Min. 100mm | 30m/min |
| MA-20x 2000 | 5-20mm | 800-2000mm | Max 40T | Min 100mm | 20m/min |
| Note: The data in the form just as reference according to general ranges, we always design and make each sheet slitting line according to each customer’s specific requirements, so each customer can buy his own well-content coil slitting machine from us. | |||||
4. Main features:
1. We can make and design all kinds of special machine according to customer's requests.
2. This is a very perfect and durable equipment. We have more than 10 years experiences.
3. This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
